Deploy Chatwoot on Vultr Kubernetes Engine using Helm Charts

Published on December 5, 2023•Updated on July 25, 2024

Introduction

Chatwoot is an open-source customer engagement platform designed to improve business processes. You can integrate the application with multiple communication channels such as email, website live chat, and social media applications to manage all customer communications in a single dashboard.

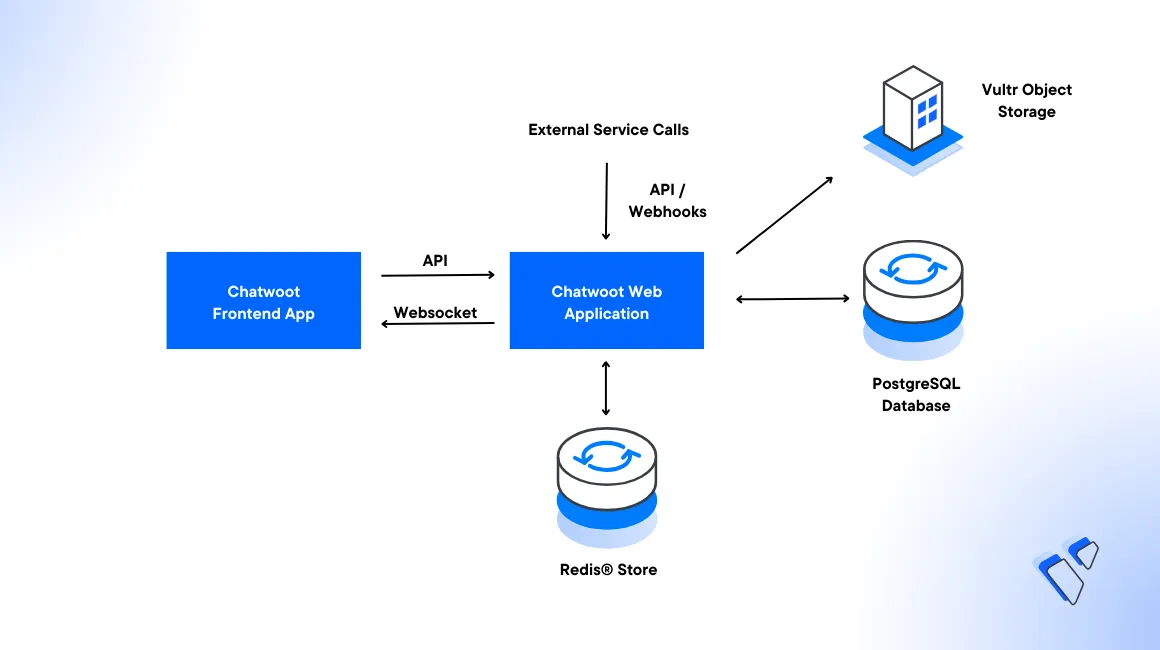

This guide explains how to deploy Chatwoot on a Vultr Kubernetes Engine (VKE) cluster using Helm Charts. To extend the Chatwoot functionalities, you will integrate Vultr Object Storage, a Vultr Managed Database for PostgreSQL, and a Vultr Managed Database for Caching to run the application in your cluster.

Prerequisites

Before you begin:

Deploy a Vultr Kubernetes Engine (VKE) Optimized Cloud Compute cluster with at least 3 nodes
Deploy a Vultr Managed Database for PostgreSQL to store Chatwoot database values
Deploy a Vultr Managed Database for Caching
Deploy a Vultr Object Storage instance to store critical Chatwoot data
Deploy a Vultr Ubuntu server to use as the management instance
Access the server using SSHas a non-root user with sudo privileges
Install and Configure Kubectl to access your VKE cluster
Install the Helm package manager:
console
```
$ sudo snap install helm --classic
```
Install the PostgreSQL psql client tool to access the database:
console
```
$ apt install postgresql-client
```

Set Up the Chatwoot Database

Log in to your Vultr Managed Database for PostgreSQL. Replace vultradmin, postgres-334h.vultrdb.com, and 5432 with your actual database details.
console
```
$ psql -h postgres-334h.vultrdb.com -p 5432 -U vultradmin
```
You can find your Vultr Database for PostgreSQL details in the connection details section on your cluster control panel.
Create a new Chatwoot database.
sql
```
defaultdb=> CREATE DATABASE chatwoot;
```
Create a new database user. For example exampleuser with a strong password.
sql
```
defaultdb=> CREATE USER exampleuser WITH PASSWORD 'strong-password';
```

Grant the user full privileges to the Chatwoot database.

                            sql

defaultdb=> GRANT ALL PRIVILEGES ON DATABASE chatwoot TO exampleuser;

Exit the PostgreSQL database console.
sql
```
defaultdb=> \q
```

Set Up the VKE Cluster

To deploy Chatwoot to your cluster, install the Nginx Ingress controller to handle incoming requests, and Cert-Manager to handle the certificate issuance process to your configured domain name. Set up the project directory, download the default Chatwoot configuration file, and install all necessary packages to your cluster as described in the steps below.

Create a new chatwoot-app directory.
console
```
$ mkdir chatwoot-app
```
Switch to the directory.
console
```
$ cd chatwoot-app
```
Download the default Chatwoot Helm configuration values file.
console
```
$ wget https://raw.githubusercontent.com/chatwoot/charts/main/charts/chatwoot/values.yaml
```
The values.yaml file contains default configurations and environment variables you should modify before deploying Chatwoot in a cluster.
Using Helm, add the Chatwoot repository to your server.
console
```
$ helm repo add chatwoot https://chatwoot.github.io/charts
```

Add the Nginx Ingress Controller repository.

                            console

$ helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx

Add the Cert-Manager repository.

                            console

$ helm repo add jetstack https://charts.jetstack.io

Update your Helm Repositories to fetch the latest Chart information.
console
```
$ helm repo update
```
Install the Nginx Ingress Controller to your cluster.
console
```
$ helm install ingress-nginx ingress-nginx/ingress-nginx
```

Install Cert-Manager to handle the SSL certificate operations.

                            console

$ helm install cert-manager jetstack/cert-manager --namespace cert-manager --create-namespace --set installCRDs=true

When successful, view the cluster services and verify the Load Balancer external IP address assigned to your Ingress Controller.

                            console

$ kubectl get services ingress-nginx-controller

Output:

NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP    PORT(S)                      AGE
ingress-nginx-controller   LoadBalancer   10.96.132.148   192.168.10.1   80:30827/TCP,443:30274/TCP   6m9s

If the external IP is in <pending> state, wait for at least 3 minutes and view the cluster services again.

Access your domain DNS records and create a new A record that points to your load balancer external IP address.

Modify the Chatwoot Configuration Values

Using the OpenSSL utility, generate a random secret key.
console
```
$ openssl rand -hex 32
```
Copy the random key generated in your output like the one below:
```
632830c6d5a23e46d73bdc362dd05d34c85d969b4ab0f5f675e8ea6d7dfaa335
```
Using a text editor such as Nano, open the values.yaml file.
console
```
$ nano values.yaml
```
Find the SECRET_KEY_BASE declaration in the env section.
yaml
```
SECRET_KEY_BASE: replace_with_your_super_duper_secret_key_base
```
Replace the default value with the string key you generated earlier. For example:
yaml
```
SECRET_KEY_BASE: 632830c6d5a23e46d73bdc362dd05d34c85d969b4ab0f5f675e8ea6d7dfaa335
```
Save and close the file.

Configure Vultr Object Storage

Follow the steps in this section to add Vultr Block Storage to your Chatwoot configuration to store chat attachments within the application.

Create a new bucket on your Vultr Object Storage. For example chatwoot-data.

Edit the values.yaml file.
console
```
$ nano values.yaml
```
Find the ACTIVE_STORAGE_SERVICE declaration in the env: section, and change the value from local to s3_compatible.
yaml
```
ACTIVE_STORAGE_SERVICE: s3_compatible
```
Scroll to the end of the file, and add the following declarations.Replace the example values with your actual Vultr Object Storage details:
yaml
```
STORAGE_BUCKET_NAME: chatwoot-prod
STORAGE_ACCESS_KEY_ID: vultr-object-storage-access-key
STORAGE_SECRET_ACCESS_KEY: vultr-object-storage-secret-key
STORAGE_REGION: ewr1
STORAGE_ENDPOINT: https://ewr1.vultrobjects.com
```
Save and close the file.

Below is what each of the above YAML declarations represent:
- STORAGE_BUCKET_NAME: Your Vultr Object Storage bucket name
- STORAGE_ACCESS_KEY_ID: Your Vultr Object Storage Access Key
- STORAGE_SECRET_ACCESS_KEY: The Vultr Object Storage Secret Key
- STORAGE_REGION: Defines your Vultr Object Storage deployment region. ewr1 represents the Vultr New Jersey region. You can identify your Object Storage region depending on your host URL. For example, the ewr1 region uses ewr1.vultrobjects.com
- STORAGE_ENDPOINT: Sets your Vultr Object Storage Hostname with secure access over HTTPS
You can find your Vultr Object Storage details in your instance Overview tab.

Set Up the Vultr Managed Database for PostgreSQL Connection

Edit the values.yaml file.
console
```
$ nano values.yaml
```

Find the following postgresql section:

                            yaml


postgresql:
enabled: true
nameOverride: chatwoot-postgresql
auth:
  username: postgres
  postgresPassword: postgres
  database: chatwoot_production
  # when existingSecret is defined auth.password, auth.PostgressPassword
  # is ignored.
  # existingSecret: secret-name
  # secretKeys:
  #   adminPasswordKey: postgres-password
  #   replicationPasswordKey: replication-password
  # The following variables are only used when internal PG is disabled
  # postgresqlHost: postgres
  # postgresqlPort: 5432

Set the enabled value to false, and replace the default values with your actual Vultr Managed Database for PostgreSQL details similar to the ones below:
yaml
```
postgresql:
  enabled: false
  nameOverride: chatwoot-postgresql
  auth:
    username: exampleuser
    postgresPassword: strong-password
    database: chatwoot
    # when existingSecret is defined auth.password, auth.PostgressPassword
    # is ignored.
    # existingSecret: secret-name
    # secretKeys:
    #   adminPasswordKey: postgres-password
    #   replicationPasswordKey: replication-password
  # The following variables are only used when internal PG is disabled
  postgresqlHost: postgres-334h.vultrdb.com
  postgresqlPort: 5432
```
Save and close the file.

Below is what the PostgreSQL section declarations represent:
- enabled: Sets the database type Chatwoot should use. When set to false, Chatwoot uses your Vultr Managed Database for PostgreSQL instead of deploying a cluster PostgreSQL pod
- username: Defines your PostgreSQL database username
- postgresPassword: Defines the PostgreSQL user password to use for connecting to the database
- database: Sets the PostgreSQL Chatwoot database
- postgresqlHost: Sets the Vultr Managed Database for PostgreSQL host URL to connect the Chatwoot database
- postgresqlPort: Sets your PostgreSQL database port to connect using the database host URL
You can find your Vultr Managed Database for PostgreSQL details in your cluster control panel connection details tab.

Enable the Vultr Managed Database for Caching Connection to Handle Queues and Cache Storage

Edit the values.yaml file.
console
```
$ nano values.yaml
```

Find the following redis section.

                            yaml


redis:
  enabled: true
  nameOverride: chatwoot-redis
  auth:
    password: redis
    # when defined the password field is ignored
    #    existingSecret: secret-name
    #    existingSecretPasswordKey: ""
  # The following variables are only used when internal Redis is disabled
  # host: redis
  # Just omit the password field if your redis cluster doesn't use password
  # password: redis
  # port: 6379
  master:
    persistence:
      enabled: true
      # If change pvc size redis.master.persistence.size: 20Gi
  replica:
    replicaCount: 1

Set the enabled: value to false, and replace the default values with your actual Vultr Managed Database for Caching details.
yaml
```
redis:
  enabled: false
  nameOverride: chatwoot-redis
  auth:
    password: redis
  # The following variables are only used when internal Redis is disabled
  host: [VULTR_REDIS_HOSTNAME]
  # Just omit the password field if your redis cluster doesn't use password
  password: [VULTR_REDIS_PASSWORD]
  port: [VULTR_REDIS_PORT]
  master:
    persistence:
      enabled: true
  replica:
    replicaCount: 1
```
Below is what the database values represent:
- enabled: Sets the Chatwoot Redis® database server location. When set to false, Chatwoot uses the Vultr Managed Database values and disables the internal cluster Redis® pods
- host: Defines your Vultr Managed Database for Caching host URL.
- password: Sets your Vultr Managed Database for Caching password. Iignore the password declaration in the auth section because it's only used with the cluster Redis® installation.
- port: Sets your Vultr Managed Database for Caching port to connect to the database host.
You can find your Vultr Managed Database for Caching host URL, port, and password in the Connection Details section within your cluster control panel Overview tab.
Scroll to the env section and set the REDIS_TLS value to true.
yaml
```
REDIS_TLS: true
```
Save and close the file.

Add Nginx Ingress Configurations to the Chatwoot Helm Configuration File

To correctly route and forward incoming external traffic to your Chatwoot application, modify the services and ingress sections as described in the steps below.

Edit the values.yaml.
console
```
$ nano values.yaml
```

Find the following services parameter.

                            yaml


services:
  name: chatwoot
  internalPort: 3000
  targetPort: 3000
  type: LoadBalancer
  annotations: {}

Change the type declaration value from LoadBalancer to ClusterIP:

                            yaml

type: ClusterIP

The modified services section should look like the one below:

                            yaml


services:
  name: chatwoot
  internalPort: 3000
  targetPort: 3000
  type: ClusterIP
  annotations: {}

Find the following ingress section.

                            yaml


ingress:
  enabled: false
  # For Kubernetes >= 1.18 you should specify the ingress-controller via the field ingressClassName
  # See https://kubernetes.io/blog/2020/04/02/improvements-to-the-ingress-api-in-kubernetes-1.18/#specifying-the-class-of-an-ingress
  # ingressClassName: nginx
  annotations: {}
    # kubernetes.io/ingress.class: nginx
    # kubernetes.io/tls-acme: "true"
  hosts:
    - host: ""
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: chatwoot
              port:
                number: 3000
  tls: []
  #  - secretName: chart-example-tls
  #    hosts:
  #      - chart-example.local

Change the enabled value from false to true.

                            yaml

enabled: true

Remove the # comment value on the ingressClassName declaration to activate the Nginx Ingress Controller.

                            yaml

ingressClassName: nginx

Within the annotations section, uncomment the kubernetes.io/ingress.class annotation

                            yaml


annotations:
    kubernetes.io/ingress.class: nginx

Scroll to the hosts section and replace the host value with your Chatwoot domain name. Replace chatwoot.example.com with your actual domain name that points to the Ingress Controller Load Balancer External IP Address.

                            yaml


hosts:
    - host: chatwoot.example.com
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: chatwoot
              port:
                number: 3000

Save and close the file.

The modified ingress section should look like the one below:

                            yaml


ingress:
  enabled: true
  # For Kubernetes >= 1.18 you should specify the ingress-controller via the field ingressClassName
  # See https://kubernetes.io/blog/2020/04/02/improvements-to-the-ingress-api-in-kubernetes-1.18/#specifying-the-class-of-an-ingress
  ingressClassName: nginx
  annotations:
  kubernetes.io/ingress.class: nginx
    # kubernetes.io/tls-acme: "true"
  hosts:
    - host: chatwoot.example.com
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: chatwoot
              port:
                number: 3000
  tls: []
  #  - secretName: chart-example-tls
  #    hosts:
  #      - chart-example.local

Using Helm, install Chatwoot with the values.yaml configurations to your Vultr Kubernetes Engine cluster.

                            console

$ helm install chatwoot chatwoot/chatwoot -f values.yaml

When successful, your output should look like the one below:

NAME: chatwoot
LAST DEPLOYED: Mon Oct 16 16:05:24 2023
NAMESPACE: default
STATUS: deployed
REVISION: 1
NOTES:
Thank you for installing chatwoot.

    Your release is named chatwoot.

    To learn more about the release, try:

        $ helm status chatwoot
        $ helm get all chatwoot

    NOTE: It may take a few minutes for the LoadBalancer IP to be available.
    You can watch the status by running
    'kubectl get svc -w chatwoot'

    export SERVICE_IP=$(kubectl get svc --namespace default chatwoot -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
    echo http://$SERVICE_IP:3000

The deployment should take about 10 minutes to complete depending on your cluster node type.

If you receive the following deployment error:

Error: INSTALLATION FAILED: failed post-install: timed out waiting for the condition

Verify and make changes to your Vultr Managed Database for PostgreSQL details in the values.yaml file.

View your cluster pods and verify that all Chatwoot pods are running.

                            console

$ kubectl get pods

Output:

NAME                                        READY   STATUS    RESTARTS   AGE
chatwoot-web-666b5bdb69-vp5bd               1/1     Running   0          2m55s
chatwoot-worker-ffccccd4-4j8l4              1/1     Running   0          2m55s
chatwoot-worker-ffccccd4-n6272              1/1     Running   0          2m55s
ingress-nginx-controller-84bd4cb7ff-h8ght   1/1     Running   0          4m54s

Verify that all pods are ready and running in your cluster to use your Chatwoot application.

Generate Let's Encrypt SSL Certificates using Cert-Manager

Create a new Let's Encrypt issuer resource file. For example chatwoot-issuer to use as Let's Encrypt Issuer.
console
```
$ nano production-issuer.yaml
```

Add the following configurations to the file. Replace admin@example.com with your actual email address.

                            yaml


apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: chatwoot-prod
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: admin@example.com
    privateKeySecretRef:
      name: chatwoot-prod
    solvers:
      - http01:
          ingress:
            class: nginx

Save and close the file.

Deploy the issuer to your cluster.

                            console

$ kubectl apply -f production-issuer.yaml

View the cluster issuers and verify that the new resource is available.
console
```
$ kubectl get issuer
```
Output:
```
NAME               READY   AGE
chatwoot-prod   True    39s
```
To use the new Certificate Issuer, edit your values.yaml file.
console
```
$ nano values.yaml
```
Find the ingress section and uncomment the tls declaration values.
yaml
```
tls:
- secretName: chart-example-tls
  hosts:
    - chart-example.local
```
Replace the default values with your actual details. For example, replace chart-example.local with your actual Chatwoot domain name, and chart-example-tls with your desired secret name.
yaml
```
tls:
- secretName: chatwoot-cert-secret
  hosts:
    - chartwoot.example.com
```

Add the cert-manager issuer annotation to your annotations section to use the new tls section values.

                            yaml

cert-manager.io/issuer: letsencrypt-prod

Save and close the file.

Your modified Ingress section should look like the one below:

                            yaml


ingress:
 enabled: true
 # For Kubernetes >= 1.18 you should specify the ingress-controller via the field ingressClassName
 # See https://kubernetes.io/blog/2020/04/02/improvements-to-the-ingress-api-in-kubernetes-1.18/#specifying-the-class-of-an-ingress
 ingressClassName: nginx
 annotations:
 kubernetes.io/ingress.class: nginx
 cert-manager.io/issuer: letsencrypt-prod
   # kubernetes.io/tls-acme: "true"
 hosts:
   - host: newchat.onlustech.com
     paths:
       - path: /
         pathType: Prefix
         backend:
           service:
             name: chatwoot
             port:
               number: 3000
tls:
- secretName: chartwoot-cert-secret
  hosts:
    - chartwoot.example.com

Upgrade the Chatwoot application with your new values.yaml configuration.

                            console

$ helm upgrade chatwoot chatwoot/chatwoot -f values.yaml

When succesful, your output should look like the one below:

Release "chatwoot" has been upgraded. Happy Helming!
NAME: chatwoot
LAST DEPLOYED: Mon Oct 16 16:25:12 2023
NAMESPACE: default
STATUS: deployed
REVISION: 2
NOTES:
Thank you for installing chatwoot.

    Your release is named chatwoot.

    To learn more about the release, try:

      $ helm status chatwoot
      $ helm get all chatwoot

    NOTE: It may take a few minutes for the LoadBalancer IP to be available.
    You can watch the status by running
    'kubectl get svc -w chatwoot'

    export SERVICE_IP=$(kubectl get svc --namespace default chatwoot -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
    echo http://$SERVICE_IP:3000

Verify that all pods are running.

                            console

$ kubectl get pods

Output:

NAME                                            READY   STATUS    RESTARTS   AGE
pod/cert-manager-55657857dd-lp9dh               1/1     Running   0          6m1s
pod/cert-manager-cainjector-7b5b5d4786-8wqnb    1/1     Running   0          6m1s
pod/cert-manager-webhook-55fb5c9c88-d5wlq       1/1     Running   0          6m1s
pod/chatwoot-web-666b5bdb69-vp5bd               1/1     Running   0          16m
pod/chatwoot-worker-ffccccd4-4j8l4              1/1     Running   0          16m
pod/chatwoot-worker-ffccccd4-n6272              1/1     Running   0          16m
pod/ingress-nginx-controller-84bd4cb7ff-h8ght   1/1     Running   0          18m

Test: Access your Chatwoot Application

Using a web browser such as Firefox, access your Chatwoot domain name.
```
https://chatwoot.example.com
```
Verify that the Chatwoot onboarding page displays in your browser.
Verify that your domain name uses a valid SSL certificate.
Fill in the Name, Company Name, Email and Password fields with your details. Then, click Finish Setup to save the new administrator details.
Login to Chatwoot using your administrator email and password to access the application dashboard.

Conclusion

You have deployed a Chatwoot instance to a Vultr Kubernetes Engine (VKE) cluster using Helm. In addition, you integrated a Vultr Managed Database for PostgreSQL, Vultr Object Storage and a Vultr Managed Database for Caching to extend the Chatwoot production environment functionalities. For more information about Chatwoot, visit the official documentation.

Deploy Chatwoot on Vultr Kubernetes Engine using Helm Charts

Introduction

Prerequisites

Set Up the Chatwoot Database

Set Up the VKE Cluster

Modify the Chatwoot Configuration Values

Configure Vultr Object Storage

Set Up the Vultr Managed Database for PostgreSQL Connection

Enable the Vultr Managed Database for Caching Connection to Handle Queues and Cache Storage

Add Nginx Ingress Configurations to the Chatwoot Helm Configuration File

Generate Let's Encrypt SSL Certificates using Cert-Manager

Test: Access your Chatwoot Application

Conclusion

More Information

Products

Features

Marketplace

Resources

Company
