How to Deploy Inference Using NVIDIA Dynamo and TensorRT-LLM

NVIDIA Dynamo is a high-throughput inference orchestration framework that enables efficient deployment of large language models across distributed GPU infrastructure. The platform provides advanced resource management capabilities, including prefill-decode disaggregation and intelligent request routing, to maximize hardware utilization and minimize latency in production environments.

This guide outlines the deployment of NVIDIA Dynamo with TensorRT-LLM, an optimized inference engine that delivers exceptional performance through kernel fusion and memory optimization. It covers infrastructure configuration, container deployment, aggregated serving for unified workloads, and disaggregated serving that distributes prefill and decode operations across separate GPU workers.

Prerequisites

Before you begin, ensure you:

• Have access to a Linux server with NVIDIA GPUs installed and the NVIDIA Container Toolkit configured. Use a non-root user with sudo privileges.
  • 1 GPU minimum for aggregated serving.
  • 2 GPUs for disaggregated serving.
• Install Docker Engine and Docker Compose.
• Create a Hugging Face account and generate an access token for gated models like Llama.

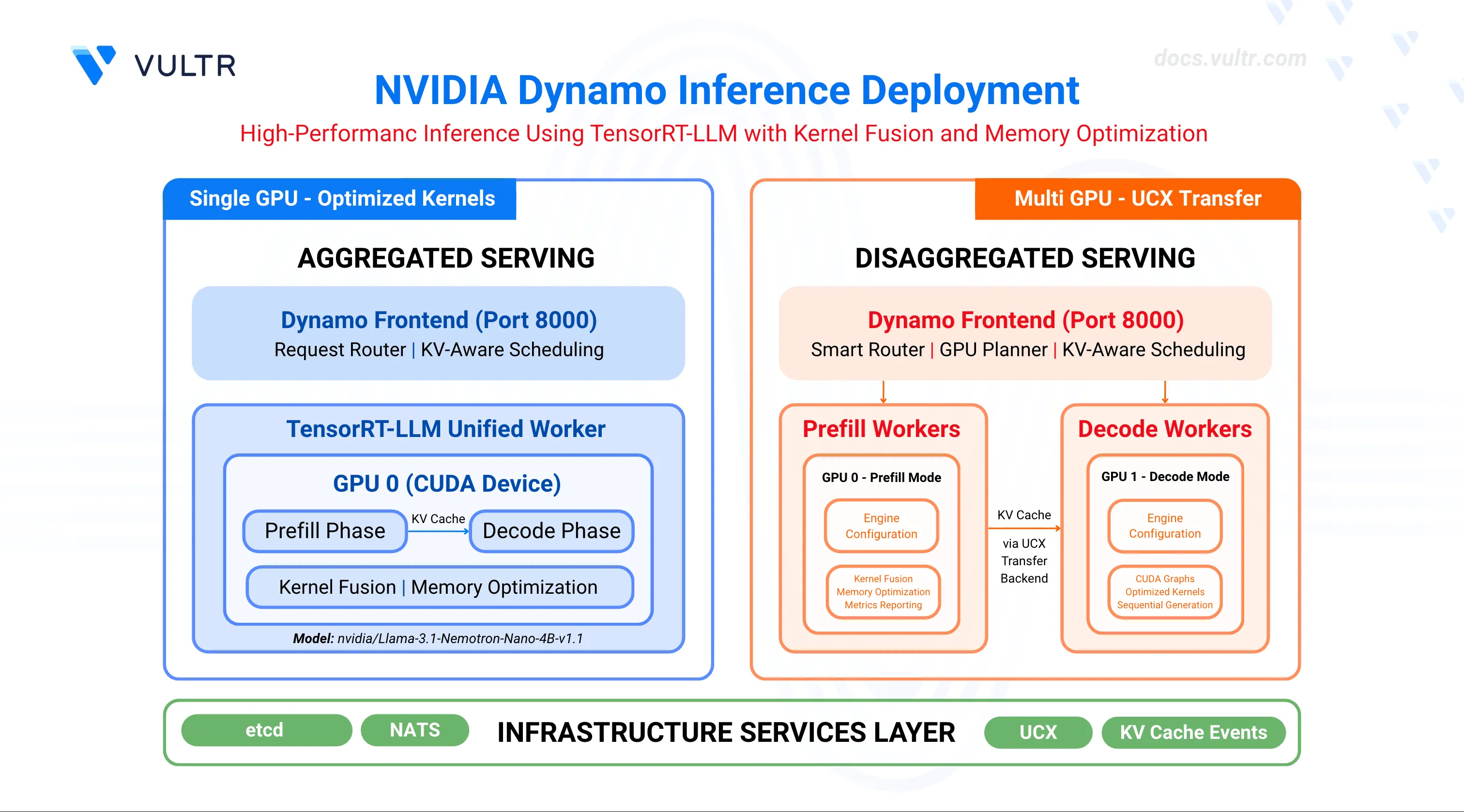

Key Components

This deployment uses several components that work together to provide efficient LLM inference.

• NVIDIA Dynamo serves as the orchestration layer, managing GPU resources, routing requests, and coordinating between different workers. The platform includes a frontend service that receives inference requests, a smart router that directs traffic based on KV cache awareness, and a GPU planner that dynamically adjusts resource allocation based on workload demands.

• TensorRT-LLM acts as the inference backend, providing highly optimized model execution through kernel fusion, quantization support, and memory optimization. It supports two worker types: prefill workers process incoming prompts with disaggregation-mode prefill and generate initial tokens, while decode workers handle sequential token generation with disaggregation-mode decode. The TensorRT-LLM backend integrates with Dynamo through metrics reporting and cache transceiver coordination.

• etcd provides distributed service discovery, allowing Dynamo components to locate and communicate with each other across the cluster. It maintains a registry of active workers and their capabilities.

• NATS handles message passing between components, particularly for KV cache events. Prefill workers publish KV cache information through NATS, enabling the router to make intelligent decisions about request placement.

• UCX (Unified Communication X) manages efficient data transfer between GPUs during disaggregated serving. It enables prefill workers to transfer KV cache data to decode workers with optimized inter-GPU communication through the cache transceiver backend.

Clone the Dynamo Repository

The Dynamo repository contains deployment scripts, container utilities, and orchestration modules required to run inference workloads. Clone the repository to access the TensorRT-LLM specific configurations and container runtime scripts.

1. Clone the repository.

   CONSOLE

   Copy

   $ git clone https://github.com/ai-dynamo/dynamo.git

   Explain Code

   Powered by Vultr AgentBeta

2. Navigate to the repository directory.

   CONSOLE

   Copy

   $ cd dynamo

   Explain Code

   Powered by Vultr AgentBeta

3. Switch to the latest stable release.

   CONSOLE

   Copy

   $ git checkout release/0.9.0

   Explain Code

   Powered by Vultr AgentBeta

   The command checks out the stable release. Visit the Dynamo releases page to find the latest stable release version.

Start Infrastructure Services

Dynamo requires etcd for worker registry and NATS for KV cache event propagation between workers. The Docker Compose configuration launches both services with exposed ports (etcd: 2379-2380, NATS: 4222, 6222, 8222). These services must run continuously for request coordination.

1. Start the infrastructure services.

   CONSOLE

   Copy

   $ docker compose -f deploy/docker-compose.yml up -d

   Explain Code

   Powered by Vultr AgentBeta

2. Verify the services are running.

   CONSOLE

   Copy

   $ docker compose -f deploy/docker-compose.yml ps

   Explain Code

   Powered by Vultr AgentBeta

   The output displays the running etcd and NATS containers.

   NAME                   IMAGE                      COMMAND                  SERVICE       CREATED          STATUS          PORTS
   deploy-etcd-server-1   bitnamilegacy/etcd:3.6.1   "/opt/bitnami/script…"   etcd-server   58 seconds ago   Up 58 seconds   0.0.0.0:2379-2380->2379-2380/tcp, [::]:2379-2380->2379-2380/tcp
   deploy-nats-server-1   nats:2.11.4                "/nats-server -c /et…"   nats-server   58 seconds ago   Up 58 seconds   0.0.0.0:4222->4222/tcp, [::]:4222->4222/tcp, 0.0.0.0:6222->6222/tcp, [::]:6222->6222/tcp, 0.0.0.0:8222->8222/tcp, [::]:8222->8222/tcp

Pull Container Image

TensorRT-LLM containers include pre-compiled kernels and optimizations for specific GPU architectures. The container runtime requires matching CUDA libraries and GPU compute capabilities to achieve optimal performance.

1. Pull the TensorRT-LLM container image from NGC.

   CONSOLE

   Copy

   $ docker pull nvcr.io/nvidia/ai-dynamo/tensorrtllm-runtime:0.9.0

   Explain Code

   Powered by Vultr AgentBeta

   Note

   Visit the NVIDIA NGC Catalog to view all available image tags.

2. (Optional) Build the container from source instead of pulling the pre-built image.

   CONSOLE

   Copy

   $ ./container/build.sh --framework TRTLLM

   Explain Code

   Powered by Vultr AgentBeta

   The build process creates an image named dynamo:latest-trtllm. If you prefer using this locally built image, replace nvcr.io/nvidia/ai-dynamo/tensorrtllm-runtime:0.9.0 with dynamo:latest-trtllm in all subsequent commands.

Configure Hugging Face Cache Permissions

The container runs as UID 1000 and requires write access to the Hugging Face cache directory for model downloads. Incorrect permissions prevent the container from accessing cached model weights, causing worker initialization failures.

1. Create the cache directory if it does not exist.

   CONSOLE

   Copy

   $ mkdir -p container/.cache/huggingface

   Explain Code

   Powered by Vultr AgentBeta

2. Set ownership to the container user (UID 1000).

   CONSOLE

   Copy

   $ sudo chown -R 1000:1000 container/.cache/huggingface

   Explain Code

   Powered by Vultr AgentBeta

3. Set appropriate permissions.

   CONSOLE

   Copy

   $ sudo chmod -R 775 container/.cache/huggingface

   Explain Code

   Powered by Vultr AgentBeta

Deploy Aggregated Serving

Aggregated serving combines prefill and decode phases on a single worker, eliminating inter-GPU cache transfers and minimizing latency. This architecture suits single-GPU deployments or scenarios where response time takes priority over maximum throughput.

1. Export your Hugging Face token to avoid rate limitations when downloading large models. Replace YOUR_HF_TOKEN with your actual token.

   CONSOLE

   Copy

   $ export HF_TOKEN=YOUR_HF_TOKEN

   Explain Code

   Powered by Vultr AgentBeta

2. Run the TensorRT-LLM container with GPU access and workspace mounting.

   CONSOLE

   Copy

   $ ./container/run.sh -it --framework TRTLLM --mount-workspace --image nvcr.io/nvidia/ai-dynamo/tensorrtllm-runtime:0.9.0 -e HF_TOKEN=$HF_TOKEN

   Explain Code

   Powered by Vultr AgentBeta

   The command starts an interactive container session with GPU support and passes the Hugging Face token to the container.

3. Inside the container, create a custom launch script for aggregated serving with the NVIDIA Nemotron model.

   CONSOLE

   Copy

   $ cat << 'EOF' > ~/nemotron_agg.sh
   #!/bin/bash

   set -e
   trap 'echo Cleaning up...; kill 0' EXIT

   # Model configuration - use command line argument or default
   MODEL="${1:-nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1}"

   # Create engine configuration file
   CONFIG_FILE="/tmp/engine_config.yaml"
   cat <<EOCONFIG > "$CONFIG_FILE"
   tensor_parallel_size: 1
   moe_expert_parallel_size: 1
   enable_attention_dp: false
   max_num_tokens: 8192
   max_batch_size: 16
   trust_remote_code: true
   backend: pytorch
   enable_chunked_prefill: true
   kv_cache_config:
     free_gpu_memory_fraction: 0.85
   cuda_graph_config:
     max_batch_size: 16
   EOCONFIG

   echo "Starting Dynamo Frontend..."
   python3 -m dynamo.frontend &

   echo "Starting TensorRT-LLM Worker with model: $MODEL"
   python3 -m dynamo.trtllm \
       --model-path "$MODEL" \
       --served-model-name "$MODEL" \
       --modality text \
       --extra-engine-args "$CONFIG_FILE"
   EOF

   Explain Code

   Powered by Vultr AgentBeta

4. Make the script executable.

   CONSOLE

   Copy

   $ chmod +x ~/nemotron_agg.sh

   Explain Code

   Powered by Vultr AgentBeta

5. Run the aggregated serving script.

   CONSOLE

   Copy

   $ ~/nemotron_agg.sh

   Explain Code

   Powered by Vultr AgentBeta

   The script starts the frontend service on port 8000 and a TensorRT-LLM worker that loads the specified model (defaults to NVIDIA Nemotron Nano 4B).

   To deploy the larger NVIDIA Nemotron Super 49B model instead, pass the model name as an argument:

   CONSOLE

   Copy

   $ ~/nemotron_agg.sh "nvidia/Llama-3_3-Nemotron-Super-49B-v1_5"

   Explain Code

   Powered by Vultr AgentBeta

   Note

   The 49B model requires high-memory GPUs such as B200 or GB200 class devices. Ensure sufficient VRAM and consider tensor parallelism for production deployments.

6. Open a new terminal session on your server (outside the container).

7. Test with a chat completion request.

   CONSOLE

   Copy

   $ curl -X POST http://localhost:8000/v1/chat/completions \
       -H "Content-Type: application/json" \
       -d '{
         "model": "nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1",
         "messages": [{"role": "user", "content": "Hello! Tell me about AI."}],
         "max_tokens": 100
       }'

   Explain Code

   Powered by Vultr AgentBeta

   The output displays the model's chat response in JSON format.

Deploy Disaggregated Serving

Disaggregated serving assigns prefill and decode phases to separate GPU workers, enabling independent scaling of each phase. Prefill workers process prompts and transfer KV cache data to decode workers via UCX, maximizing throughput by separating prompt processing from token generation.

1. Exit the container if you are still inside from the previous section. Press Ctrl+C to terminate the running process, then press Ctrl+D to exit the container.

2. Export your Hugging Face token. Replace YOUR_HF_TOKEN with your actual token.

   CONSOLE

   Copy

   $ export HF_TOKEN=YOUR_HF_TOKEN

   Explain Code

   Powered by Vultr AgentBeta

3. Run the container.

   CONSOLE

   Copy

   $ ./container/run.sh -it --framework TRTLLM --mount-workspace --image nvcr.io/nvidia/ai-dynamo/tensorrtllm-runtime:0.9.0 -e HF_TOKEN=$HF_TOKEN

   Explain Code

   Powered by Vultr AgentBeta

4. Inside the container, create a custom launch script for disaggregated serving with the NVIDIA Nemotron model.

   CONSOLE

   Copy

   $ cat << 'EOF' > ~/nemotron_disagg.sh
   #!/bin/bash

   # Kill any existing processes
   pkill -f "dynamo.frontend"
   pkill -f "dynamo.trtllm"
   sleep 2

   # Model configuration - use command line argument or default
   MODEL="${1:-nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1}"

   # Create prefill engine configuration file
   CONFIG_FILE_PREFILL="/tmp/prefill_config.yaml"
   cat <<EOCONFIGPREFILL > "$CONFIG_FILE_PREFILL"
   tensor_parallel_size: 1
   moe_expert_parallel_size: 1
   enable_attention_dp: false
   max_num_tokens: 8192
   trust_remote_code: true
   backend: pytorch
   enable_chunked_prefill: true
   disable_overlap_scheduler: true
   cuda_graph_config:
     max_batch_size: 16
   kv_cache_config:
     free_gpu_memory_fraction: 0.85
   cache_transceiver_config:
     backend: DEFAULT
   EOCONFIGPREFILL

   # Create decode engine configuration file
   CONFIG_FILE_DECODE="/tmp/decode_config.yaml"
   cat <<EOCONFIGDECODE > "$CONFIG_FILE_DECODE"
   tensor_parallel_size: 1
   moe_expert_parallel_size: 1
   enable_attention_dp: false
   max_num_tokens: 8192
   trust_remote_code: true
   backend: pytorch
   enable_chunked_prefill: true
   disable_overlap_scheduler: false
   cuda_graph_config:
     max_batch_size: 16
   kv_cache_config:
     free_gpu_memory_fraction: 0.85
   cache_transceiver_config:
     backend: DEFAULT
   EOCONFIGDECODE

   echo "Starting Dynamo Frontend..."
   python3 -m dynamo.frontend &

   echo "Starting Prefill Worker with model: $MODEL"
   # Prefill Worker - Uses GPU 0
   CUDA_VISIBLE_DEVICES=0 python3 -m dynamo.trtllm \
       --model-path "$MODEL" \
       --served-model-name "$MODEL" \
       --extra-engine-args "$CONFIG_FILE_PREFILL" \
       --modality text \
       --disaggregation-mode prefill &

   echo "Starting Decode Worker with model: $MODEL"
   # Decode Worker - Uses GPU 1
   CUDA_VISIBLE_DEVICES=1 python3 -m dynamo.trtllm \
       --model-path "$MODEL" \
       --served-model-name "$MODEL" \
       --extra-engine-args "$CONFIG_FILE_DECODE" \
       --modality text \
       --disaggregation-mode decode

   # Keep script running
   wait
   EOF

   Explain Code

   Powered by Vultr AgentBeta

5. Make the script executable.

   CONSOLE

   Copy

   $ chmod +x ~/nemotron_disagg.sh

   Explain Code

   Powered by Vultr AgentBeta

6. Run the disaggregated serving script.

   CONSOLE

   Copy

   $ ~/nemotron_disagg.sh

   Explain Code

   Powered by Vultr AgentBeta

   The script starts the frontend service on port 8000, a prefill worker on GPU 0, and a decode worker on GPU 1 with the specified model (defaults to NVIDIA Nemotron Nano 4B).

   To deploy the larger NVIDIA Nemotron Super 49B model instead, pass the model name as an argument:

   CONSOLE

   Copy

   $ ~/nemotron_disagg.sh "nvidia/Llama-3_3-Nemotron-Super-49B-v1_5"

   Explain Code

   Powered by Vultr AgentBeta

   Note

   The 49B model requires high-memory GPUs such as B200 or GB200 class devices. Ensure sufficient VRAM and consider tensor parallelism for production deployments.

7. Open a new terminal session on your server (outside the container).

8. Test with multiple sequential requests to observe worker distribution.

   CONSOLE

   Copy

   $ for i in {1..5}; do
       echo "Request $i:"
       curl -s http://localhost:8000/v1/chat/completions \
         -H "Content-Type: application/json" \
         -d "{
           \"model\": \"nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1\",
           \"messages\": [{\"role\": \"user\", \"content\": \"Test request $i\"}],
           \"max_tokens\": 10
         }" | jq '.id'
       sleep 1
     done

   Explain Code

   Powered by Vultr AgentBeta

   Each request returns a unique ID, and the logs inside the container show which workers process each request.

9. Test with concurrent requests to verify load distribution.

   CONSOLE

   Copy

   $ for i in {1..10}; do
       curl -s http://localhost:8000/v1/chat/completions \
         -H "Content-Type: application/json" \
         -d "{
           \"model\": \"nvidia/Llama-3.1-Nemotron-Nano-4B-v1.1\",
           \"messages\": [{\"role\": \"user\", \"content\": \"Concurrent test $i\"}],
           \"max_tokens\": 20
         }" &
     done
     wait
     echo "All requests completed"

   Explain Code

   Powered by Vultr AgentBeta

   Dynamo's router distributes the requests across the prefill and decode workers.

Conclusion

You have successfully deployed inference workloads using NVIDIA Dynamo with TensorRT-LLM. The aggregated serving configuration provides a simple, single-GPU deployment suitable for low-latency applications, while the disaggregated serving configuration optimizes throughput by separating prefill and decode phases across multiple GPUs. Dynamo's intelligent routing and resource management maximize GPU utilization and token generation efficiency. For more advanced configurations, including KV-aware routing, multimodal support, and Kubernetes deployments, refer to the official NVIDIA Dynamo documentation.
