How to Deploy Nextcloud – Private Cloud Storage

Nextcloud is an open-source productivity platform that combines file storage with a suite of collaboration tools, including calendars, contacts, and video conferencing. It is designed for privacy and security, giving you full control over your data while offering features similar to those found in Microsoft 365 or Google Workspace.

This article demonstrates how to deploy Nextcloud on Ubuntu 24.04 using Docker Compose.

Prerequisites

Before you begin:

• Access an Ubuntu 24.04 server as a non-root user with sudo privileges.
• Install Docker and Docker Compose.
• Configure a domain name, such as nextcloud.example.com, pointing to your server’s public IP address.

Set Up the Directory Structure and Environment Variables

Nextcloud requires persistent storage for user data and the database, as well as environment variables to configure the installation. This section sets up the necessary directories and configuration file.

1. Create the project folders.

   CONSOLE

   Copy

   $ mkdir -p ~/nextcloud/{html,mysql,redis,letsencrypt}

   Explain Code

   Powered by Vultr AgentBeta
   • html - Stores the main Nextcloud application code and user data.
   • mysql - Persistent storage for the MariaDB database.
   • redis - Stores Redis cache snapshots for persistence between restarts.
   • letsencrypt - Stores Traefik ACME certificates.

2. Navigate to the root Nextcloud directory.

   CONSOLE

   Copy

   $ cd ~/nextcloud

   Explain Code

   Powered by Vultr AgentBeta

3. Create an .env file to store your configuration.

   CONSOLE

   Copy

   $ nano .env

   Explain Code

   Powered by Vultr AgentBeta

4. Add the following values:

   INI

   Copy

   NEXTCLOUD_DOMAIN=nextcloud.example.com
   NEXTCLOUD_ADMIN_USER=admin
   NEXTCLOUD_ADMIN_PASSWORD=STRONG_ADMIN_PASSWORD

   MYSQL_DATABASE=nextcloud
   MYSQL_USER=nextcloud
   MYSQL_PASSWORD=STRONG_DB_PASSWORD
   MYSQL_ROOT_PASSWORD=STRONG_ROOT_PASSWORD

   LETSENCRYPT_EMAIL=admin@example.com

   Explain Code

   Powered by Vultr AgentBeta

   Replace the placeholders with your own values:

   • nextcloud.example.com – Your actual domain name.
   • STRONG_ADMIN_PASSWORD – The password you will use to log in to the Nextcloud web interface.
   • STRONG_DB_PASSWORD – Secure password for the Nextcloud database user.
   • admin@example.com – Your email for TLS certificate notifications.

   Save and close the file.

Deploy with Docker Compose

This section deploys the full Nextcloud stack behind Traefik. The configuration includes services for the application, database, and cache.

1. Add your user account to the docker user group.

   CONSOLE

   Copy

   $ sudo usermod -aG docker $USER

   Explain Code

   Powered by Vultr AgentBeta

2. Apply the new group membership.

   CONSOLE

   Copy

   $ newgrp docker

   Explain Code

   Powered by Vultr AgentBeta

3. Create the Docker Compose manifest file.

   CONSOLE

   Copy

   $ nano docker-compose.yml

   Explain Code

   Powered by Vultr AgentBeta

4. Add the following contents:

   YAML

   Copy

   services:
     traefik:
       image: traefik:latest
       container_name: traefik
       restart: unless-stopped
       environment:
         DOCKER_API_VERSION: "1.44"
       command:
         - "--providers.docker=true"
         - "--providers.docker.exposedbydefault=false"
         - "--entrypoints.web.address=:80"
         - "--entrypoints.websecure.address=:443"
         - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
         - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
         - "--certificatesresolvers.le.acme.httpchallenge=true"
         - "--certificatesresolvers.le.acme.httpchallenge.entrypoint=web"
         - "--certificatesresolvers.le.acme.email=${LETSENCRYPT_EMAIL}"
         - "--certificatesresolvers.le.acme.storage=/letsencrypt/acme.json"
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - /var/run/docker.sock:/var/run/docker.sock:ro
         - ./letsencrypt:/letsencrypt

     mariadb:
       image: mariadb:10.11
       container_name: nextcloud_db
       restart: unless-stopped
       command: --transaction-isolation=READ-COMMITTED --binlog-format=ROW
       environment:
         MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD}
         MYSQL_PASSWORD: ${MYSQL_PASSWORD}
         MYSQL_DATABASE: ${MYSQL_DATABASE}
         MYSQL_USER: ${MYSQL_USER}
       volumes:
         - ./mysql:/var/lib/mysql
       healthcheck:
         test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
         interval: 10s
         timeout: 5s
         retries: 3

     redis:
       image: redis:latest
       container_name: nextcloud_redis
       restart: unless-stopped
       volumes:
         - ./redis:/data
       healthcheck:
         test: ["CMD", "redis-cli", "ping"]
         interval: 10s
         timeout: 5s
         retries: 3

     nextcloud:
       image: nextcloud:latest
       container_name: nextcloud_app
       restart: unless-stopped
       depends_on:
         mariadb:
           condition: service_healthy
         redis:
           condition: service_healthy
       environment:
         NEXTCLOUD_ADMIN_USER: ${NEXTCLOUD_ADMIN_USER}
         NEXTCLOUD_ADMIN_PASSWORD: ${NEXTCLOUD_ADMIN_PASSWORD}
         NEXTCLOUD_TRUSTED_DOMAINS: ${NEXTCLOUD_DOMAIN}
         MYSQL_HOST: mariadb
         MYSQL_DATABASE: ${MYSQL_DATABASE}
         MYSQL_USER: ${MYSQL_USER}
         MYSQL_PASSWORD: ${MYSQL_PASSWORD}
         REDIS_HOST: redis
       volumes:
         - ./html:/var/www/html
       labels:
         - "traefik.enable=true"
         - "traefik.http.routers.nextcloud.rule=Host(`${NEXTCLOUD_DOMAIN}`)"
         - "traefik.http.routers.nextcloud.entrypoints=websecure"
         - "traefik.http.routers.nextcloud.tls=true"
         - "traefik.http.routers.nextcloud.tls.certresolver=le"
         - "traefik.http.services.nextcloud.loadbalancer.server.port=80"
         - "traefik.http.middlewares.nextcloud-dav.redirectregex.regex=^/.well-known/(card|cal)dav"
         - "traefik.http.middlewares.nextcloud-dav.redirectregex.replacement=/remote.php/dav/"
         - "traefik.http.routers.nextcloud.middlewares=nextcloud-dav"

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file.

   This Docker Compose file deploys Nextcloud behind Traefik, using MariaDB for structured data and Redis for caching. Each service has a specific purpose:

   nextcloud service

   • Runs the official nextcloud image.
   • Connects to the mariadb service for the database and redis for transactional file locking and caching.
   • Automatically runs the installation wizard using the NEXTCLOUD_ADMIN_USER and NEXTCLOUD_ADMIN_PASSWORD variables provided.
   • Stores all application data and uploaded files in the ./html directory (mounted to /var/www/html).
   • Exposes port 80 internally, which Traefik routes to via labels.
   • Includes middleware labels (nextcloud-dav) to handle CalDAV and CardDAV redirects, ensuring calendar and contact syncing works correctly.

   mariadb service

   • Runs MariaDB 10.11, configured specifically for Nextcloud requirements (using READ-COMMITTED transaction isolation).
   • Initializes the database with the credentials from your .env file.
   • Stores database files in the ./mysql directory.
   • Includes a health check to ensure it is fully ready before the Nextcloud container attempts to connect.

   redis service

   • Runs a Redis server for in-memory caching and distributed file locking. Redis significantly improves Nextcloud's performance and prevents data corruption when multiple users edit files simultaneously.
   • Stores cache persistence data in the ./redis directory.

   traefik service

   • Listens on ports 80 and 443 to handle all incoming traffic.
   • Automatically requests and renews TLS certificates from Let’s Encrypt for your domain name.
   • Redirects all insecure HTTP traffic to HTTPS.

5. Start all services in detached mode.

   CONSOLE

   Copy

   $ docker compose up -d

   Explain Code

   Powered by Vultr AgentBeta

6. Check the container status.

   CONSOLE

   Copy

   $ docker compose ps

   Explain Code

   Powered by Vultr AgentBeta

   Note

   For more information on managing a Docker Compose stack, see the How To Use Docker Compose article.

Access and Configure Nextcloud

By default, Nextcloud restricts access to localhost to prevent header poisoning attacks. To access the site via your domain name, you must add it to the trusted list.

1. Configure your domain as a trusted domain using the command below. Replace nextcloud.example.com with your actual domain name.

   CONSOLE

   Copy

   $ docker compose exec --user www-data nextcloud php occ config:system:set trusted_domains 1 --value=nextcloud.example.com

   Explain Code

   Powered by Vultr AgentBeta
   • --user www-data: Runs the command as the web server user.
   • nextcloud: Target service name defined in the docker-compose file.
   • occ: Nextcloud's command-line administration tool.

2. Run the following command to enable HTTPS for all generated links using Nextcloud, which prevents the Service from getting stuck in a login loop.

   CONSOLE

   Copy

   $ docker compose exec --user www-data nextcloud php occ config:system:set overwriteprotocol --value=https

   Explain Code

   Powered by Vultr AgentBeta

3. Open your browser and visit https://nextcloud.example.com. Enter the NEXTCLOUD_ADMIN_USER and NEXTCLOUD_ADMIN_PASSWORD you configured in your .env file.

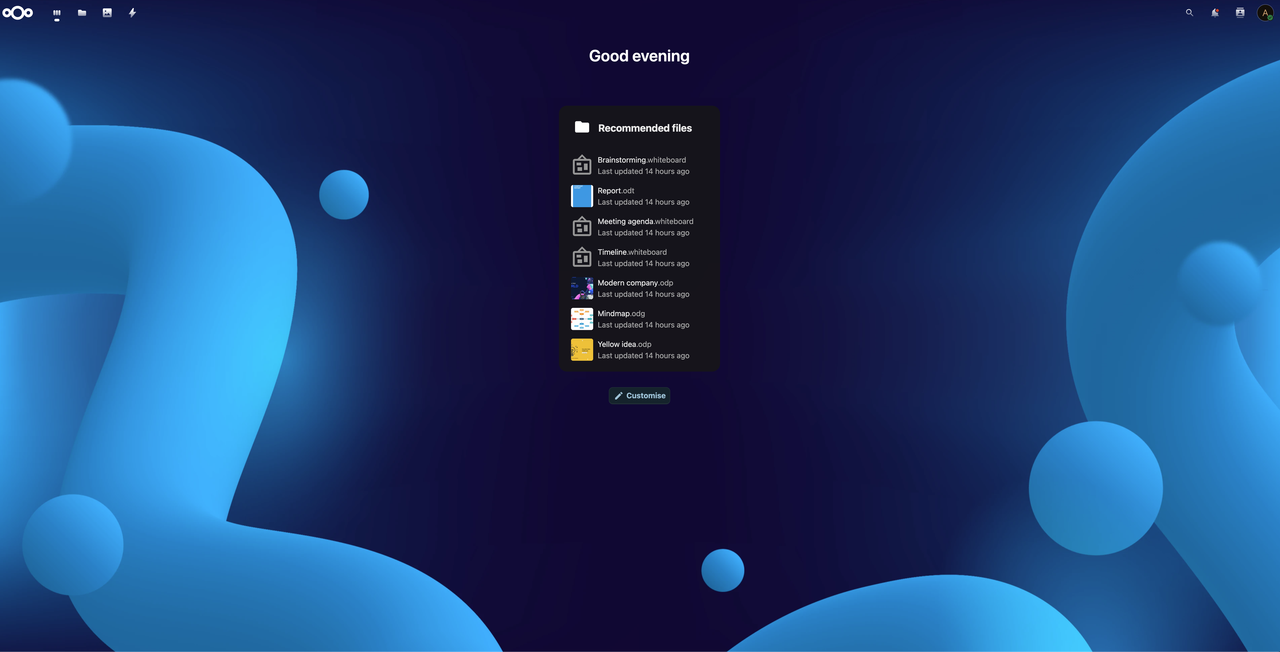

4. Upon successful login, the Nextcloud dashboard loads.



Conclusion

You have successfully deployed Nextcloud on Ubuntu 24.04 using Docker Compose. Your deployment is now secure and accessible over HTTPS. For more details on managing your instance, visit the Nextcloud Administration Manual.
