How to Deploy JupyterLab Workspace on Vultr Cloud GPU Using AMD Enterprise AI Suite

AI Workspaces in the AMD AI Workbench provide isolated, ready-to-use environments designed for developing and running AI workloads. Each workspace includes preconfigured tools like Jupyter Notebooks and essential command-line utilities. They come optimized with AMD GPU accelerated frameworks such as PyTorch, TensorFlow, and ROCm to streamline experimentation.

This guide demonstrates how to deploy a JupyterLab workspace on Vultr Cloud GPU using the AMD Enterprise AI Suite. You will set up a project, assign the required secrets, and launch a GPU-optimized workspace for developing and testing AI workloads.

Prerequisites

Before you begin, ensure you:

• Have access to an AMD Instinct™ GPU, MI300X, MI325X, or MI355X.
• Have deployed the AMD Enterprise AI Suite.

Create a Project Using AMD Resource Manager

This section explains how to create a new project in the AMD Resource Manager and configure its essential settings. You’ll access the UI, authenticate, set project details, and define guaranteed resource quotas to ensure consistent workload performance.

1. Open the AMD Resource Manager UI in your browser. Replace YOUR_DOMAIN with the domain you configured during installation.

   https://airmui.YOUR_DOMAIN

2. Click Sign in with Keycloak and enter your credentials to log in to the AMD Resource Manager.

3. Select Projects under Resource Manager.

4. Click Create project and enter the following details:

   • Name: Enter a name for the project.
   • Description: Add a brief description.
   • Cluster: Choose the cluster where you want to create the project.

5. After creating the project, the UI redirects you to the Project settings page.

6. In the Quota tab define the Guaranteed Resource Allocation for the project.

   • GPUs: Specify the number of GPUs to allocate.
   • CPU Cores: Specify the number of CPU cores to allocate.
   • System Memory: Specify the amount of RAM to allocate.
   • Ephemeral Disk: Specify the disk space to allocate.
   Note

   When you allocate guaranteed resources to a project, you ensure that its workloads always receive the defined resources, even under heavy load or high-traffic conditions.

7. Click the Users tab and then click Add Member.

8. In the side panel, select the user you want to assign to the project, then click Add to project.

9. (Optional) You can also create secrets or configure S3 buckets. These tasks are outside the scope of this guide.

Assign Secrets to the Project

This section covers how to assign the required MinIO credentials secret to your project in the AMD Resource Manager. You’ll access the Secrets panel, edit the minio-credentials-fetcher secret, and assign it to your project to enable secure storage access.

1. Navigate to the Secrets section under Resource Manager.
2. Click the three dots next to the minio-credentials-fetcher secret.
3. Click Edit assignment then choose your project from the list.
4. Click Save changes to apply the assignment.

Deploy JupyterLab Workspace Using AMD AI Workbench

This section shows you how to deploy a JupyterLab workspace in the AMD AI Workbench. You’ll select your project, choose the JupyterLab template, configure basic settings, and launch the workspace. After deployment, you can track its progress and open JupyterLab using the provided external URL structure.

1. Click the AI Workbench menu on the left navigation panel to expand its options.

2. Click Workspaces, then select your project from the project selector in the top-right corner.

3. From the available workspace templates, select JupyterLab and click View and deploy.

4. A deployment panel opens on the right. Under Deployment Settings, configure the following.

   • Workload name: Enter a descriptive name for the workspace.
   • Container image: A default JupyterLab image is preselected. Update it if you require a specific version.
   • Image pull secrets: Select a secret if your container image requires authentication.
   • Customize Resource Allocation: Toggle this ON if you want to define custom resources for the workload.
     • Number of GPUs: Specify how many GPUs the workspace should use.
     • Amount of system memory (RAM) per GPU: Define the RAM allocated per GPU.
     • Number of CPU Cores per GPU: Define the CPU resources per GPU.

5. After configuring the settings, click Quick deploy to launch the workspace.

   Note

   The deployment may take 5–10 minutes, depending on the container image size.

6. Navigate to the Workloads section to track the deployment progress.

7. Click the three dots on the right side of the workload to open action options:

   • Open details: Shows detailed information about the workload.
   • Open workspace: Opens the JupyterLab interface.
   • View logs: Displays deployment logs to help identify issues.
   • Delete: Removes the workload from the project.

8. Click Open details to view detailed workload information.

   • Basic information: Displays general workload metadata.
   • Timeline: Shows when the workload was created and updated.
   • Cluster and resources: Shows allocated resources.
   • Output: Displays access endpoints for the workload.
     • External host: URL for accessing the workspace externally.
     • Internal host: URL for accessing it within the cluster.

9. Copy the External host URL and paste it in your browser, or click Open workspace to launch JupyterLab directly.

10. The workspace URL follows this structure.

    https://workspaces.YOUR_DOMAIN/xxxx...

    The URL starts with workspaces, followed by your domain, and ends with a unique identifier generated for the workload.

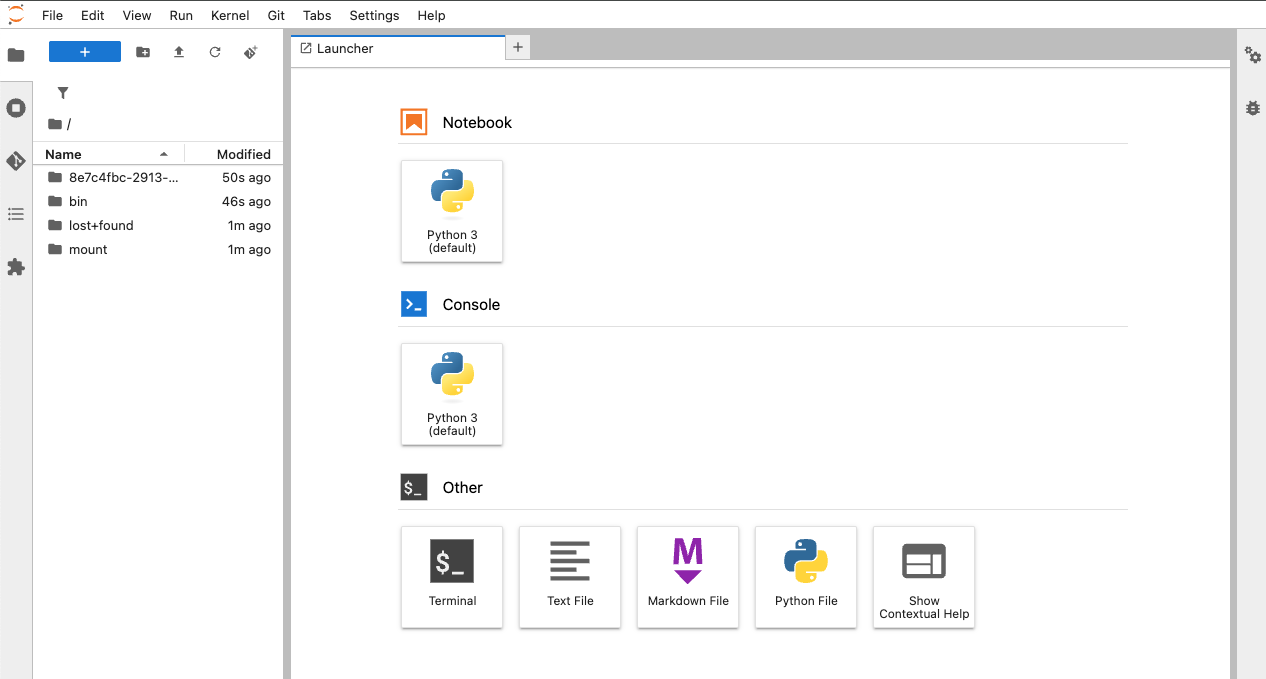

11. Verify that the JupyterLab page displays.



12. Click Python 3 under Notebook to create a new Python notebook.

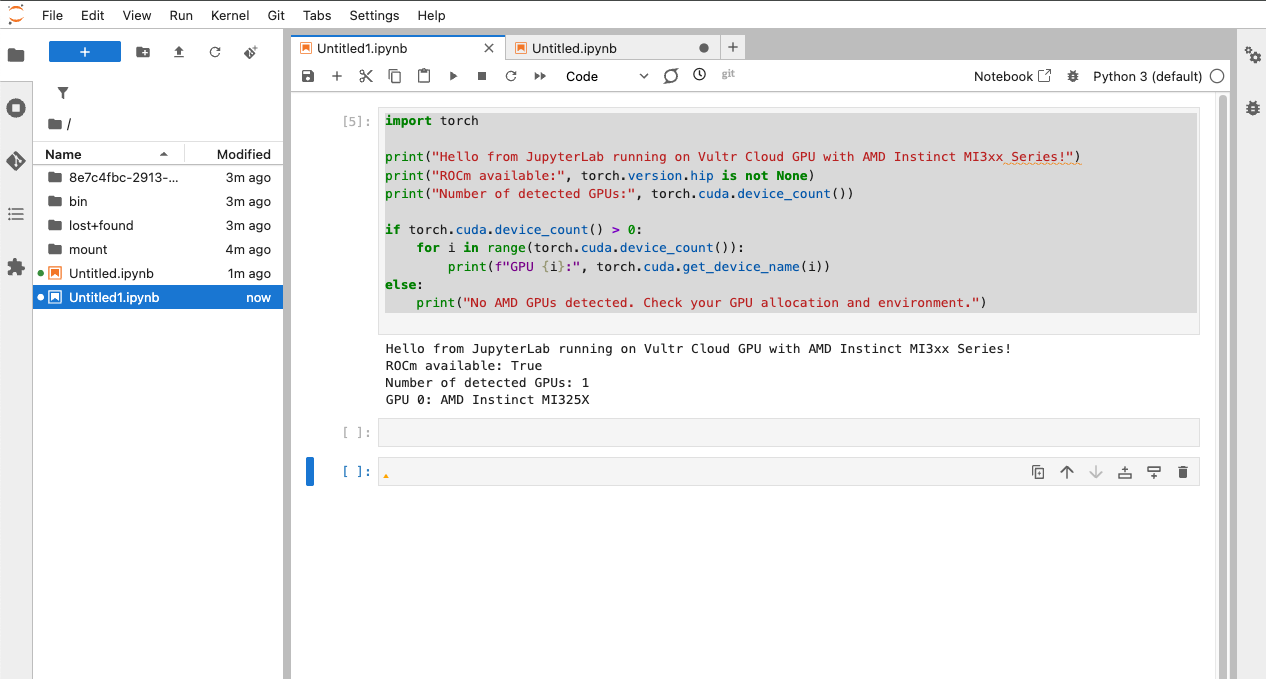

13. Run the following code snippet in your JupyterLab notebook to verify that the environment is functional and that your AMD Instinct GPU is detected correctly.

    python Copy

    import torch

    print("Hello from JupyterLab running on Vultr Cloud GPU with AMD Instinct MI3xx Series!")
    print("ROCm available:", torch.version.hip is not None)
    print("Number of detected GPUs:", torch.cuda.device_count())

    if torch.cuda.device_count() > 0:
        for i in range(torch.cuda.device_count()):
            print(f"GPU {i}:", torch.cuda.get_device_name(i))
    else:
        print("No AMD GPUs detected. Check your GPU allocation and environment.")


    Explain Code

14. Confirm that the GPU information appears in the output.



Conclusion

By following this guide, you successfully deployed a JupyterLab workspace on Vultr Cloud GPU using the AMD Enterprise AI Suite. You created a project, assigned the required secrets, and launched a GPU-optimized workspace ready for AI development. With these steps completed, you had a functional environment for building, testing, and accelerating your workloads on AMD Instinct™ GPUs. Learn how to deploy AMD Inference Microservice on Vultr Cloud GPU
