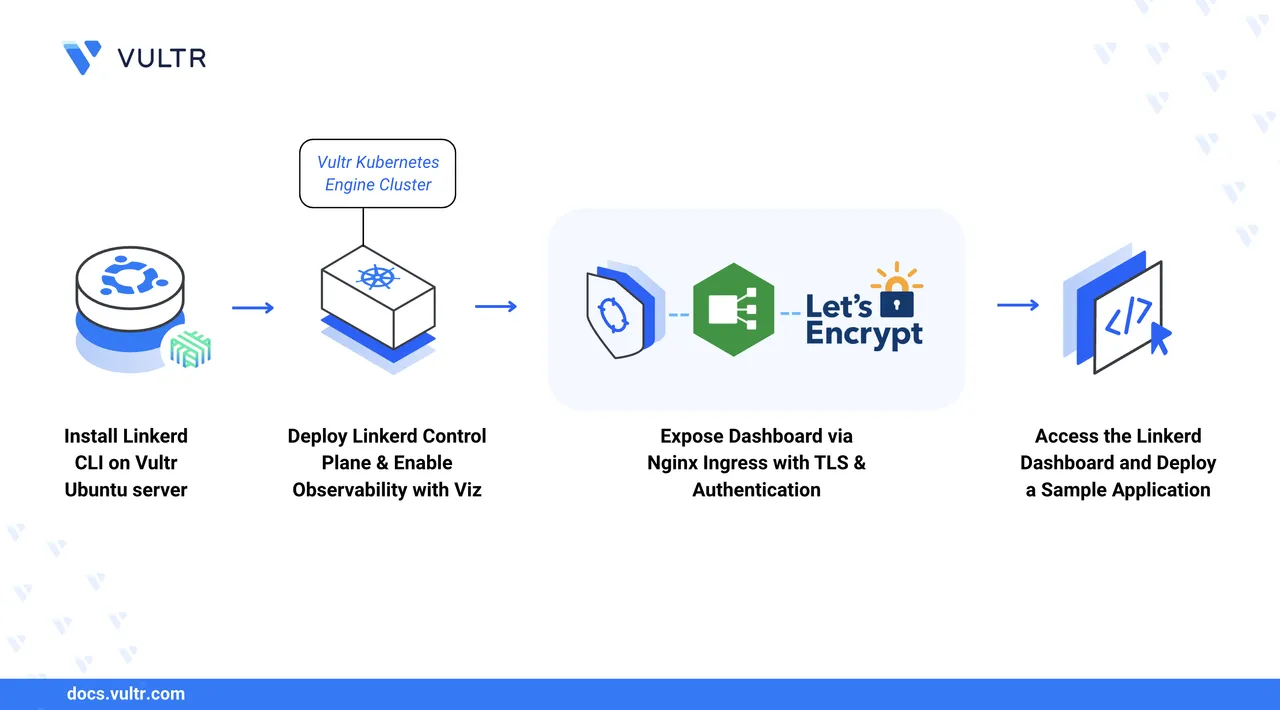

How to Install and Use Linkerd on Vultr Kubernetes Engine (VKE)

Linkerd is a lightweight, open-source service mesh for Kubernetes that provides observability, security, and traffic management features. It uses a sidecar proxy model where lightweight proxies handle pod-to-pod communication while a control plane manages configuration and routing.

This guide explains how to install Linkerd on a Vultr Kubernetes Engine (VKE) cluster. You will deploy a sample application, configure Ingress for external access, and implement traffic management features.

Prerequisites

Before you begin, you need to:

• Have a Vultr Kubernetes Engine (VKE) cluster.
• A domain name with an A record pointing to your cluster's load balancer IP address (such as linkerd.example.com).
• Have access to a Ubuntu-based server or local machine as your workstation for managing your VKE cluster and using Linkerd CLI.
• Install and Configure Kubectl to access your Kubernetes cluster.
• Install Helm on your workstation.

Install the Linkerd CLI

Install the Linkerd command-line interface on your workstation to manage your service mesh deployment.

1. Update the system package index.

   console Copy

   $ sudo apt update


   Explain Code

2. Download and install the Linkerd CLI.

   console Copy

   $ curl --proto '=https' --tlsv1.2 -sSfL https://run.linkerd.io/install-edge | sh


   Explain Code

3. Add Linkerd to your PATH.

   console Copy

   $ export PATH=$PATH:$HOME/.linkerd2/bin


   Explain Code

4. Make the PATH change permanent.

   console Copy

   $ echo 'export PATH=$PATH:$HOME/.linkerd2/bin' >> ~/.bashrc
   $ source ~/.bashrc


   Explain Code

5. Verify the CLI installation.

   console Copy

   $ linkerd version --client


   Explain Code

   Output:

   Client version: edge-25.10.3

   The server version shows as unavailable because the control plane is not yet installed.

Validate the Kubernetes Cluster

Ensure your cluster meets Linkerd's requirements before installation.

1. Run pre-installation checks.

   console Copy

   $ linkerd check --pre


   Explain Code

   All checks should pass with Status check results are √. If any checks fail, resolve the issues before proceeding.

Install Linkerd Control Plane

Deploy Linkerd's core components to your cluster.

1. Install the Gateway API CRDs.

   console Copy

   $ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml


   Explain Code

2. Install Linkerd CRDs.

   console Copy

   $ linkerd install --crds | kubectl apply -f -


   Explain Code

3. Install the control plane.

   console Copy

   $ linkerd install | kubectl apply -f -


   Explain Code

4. Verify the installation.

   console Copy

   $ linkerd check


   Explain Code

5. Check control plane pods.

   console Copy

   $ kubectl get pods -n linkerd


   Explain Code

   Output:

   NAME                                     READY   STATUS    RESTARTS   AGE
   linkerd-destination-7b4657cfd8-btqdv     4/4     Running   0          4m40s
   linkerd-identity-5584896d84-6pmdm        2/2     Running   0          4m40s
   linkerd-proxy-injector-995fcbf47-dv6qr   2/2     Running   0          4m40s

Install Linkerd Viz Extension

The viz extension provides observability features and the web dashboard.

1. Install the viz extension.

   console Copy

   $ linkerd viz install | kubectl apply -f -


   Explain Code

2. Verify the viz installation.

   console Copy

   $ linkerd viz check


   Explain Code

Expose Linkerd Dashboard

You can expose the Linkerd dashboard securely via Kubernetes Ingress. In this section, expose the Linkerd dashboard securely using TLS encryption.

Install Nginx Ingress Controller

Deploy Nginx Ingress Controller to handle external traffic routing.

1. Add the Nginx Ingress Helm repository.

   console Copy

   $ helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx


   Explain Code

2. Update Helm.

   console Copy

   $ helm repo update


   Explain Code

3. Install Nginx Ingress Controller.

   console Copy

   $ helm install ingress-nginx ingress-nginx/ingress-nginx \
       --create-namespace --namespace ingress-nginx


   Explain Code

4. Wait for the LoadBalancer to get an external IP.

   console Copy

   $ kubectl get service -n ingress-nginx ingress-nginx-controller


   Explain Code

   Sample output:

   NAME                       TYPE           CLUSTER-IP      EXTERNAL-IP       PORT(S)                      AGE
   ingress-nginx-controller   LoadBalancer   10.99.177.190   192.0.20.11       80:31460/TCP,443:32364/TCP   3m51s

   Note the EXTERNAL-IP address value. This is where you should point your domain's A record.

5. Verify the Nginx Ingress controller pods are running.

   console Copy

   $ kubectl get pods -n ingress-nginx


   Explain Code

Configure Dashboard Authentication

Create basic authentication credentials for securing dashboard access.

1. Install htpasswd utility.

   console Copy

   $ sudo apt install apache2-utils -y


   Explain Code

2. Generate authentication credentials. Replace admin with your preferred username.

   console Copy

   $ htpasswd -c auth admin


   Explain Code

   Enter a strong password when prompted.

3. Create a Kubernetes secret with the credentials.

   console Copy

   $ kubectl create secret generic web-ingress-auth \
       --from-file=auth \
       --namespace=linkerd-viz


   Explain Code

4. Remove the local auth file.

   console Copy

   $ rm auth


   Explain Code

Install cert-manager

Using cert-manager, you can secure your dashboard with HTTPS using Let's Encrypt TLS certificates.

1. Add the Jetstack repository to Helm.

   console Copy

   $ helm repo add jetstack https://charts.jetstack.io


   Explain Code

2. Update Helm.

   console Copy

   $ helm repo update


   Explain Code

3. Install cert-manager and all required CRDs in your Kubernetes cluster.

   console Copy

   $ helm install cert-manager jetstack/cert-manager \
     --namespace cert-manager --create-namespace \
     --set crds.enabled=true


   Explain Code

4. Check cert-manager resources and wait till they become ready.

   console Copy

   $ kubectl get all -n cert-manager


   Explain Code

5. Create a ClusterIssuer for Let's Encrypt.

   console Copy

   $ nano letsencrypt-issuer.yaml


   Explain Code

6. Add the following content. Replace admin@example.com with your email.

   yaml Copy

   apiVersion: cert-manager.io/v1
   kind: ClusterIssuer
   metadata:
     name: letsencrypt-prod
   spec:
     acme:
       server: https://acme-v02.api.letsencrypt.org/directory
       email: admin@example.com
       privateKeySecretRef:
         name: letsencrypt-prod
       solvers:
       - http01:
           ingress:
             class: nginx


   Explain Code

   Save and close the file.

7. Apply the ClusterIssuer.

   console Copy

   $ kubectl apply -f letsencrypt-issuer.yaml


   Explain Code

Create Ingress for Linkerd Dashboard

Create an Ingress resource to expose the Linkerd dashboard externally.

1. Update the ingress-nginx-controller ConfigMap so the latest version of cert-manager can verify your domain. Without this change, a strict Nginx setting may block cert-manager’s automatic domain check, stopping it from issuing TLS certificates.

   console Copy

   $ kubectl patch configmap ingress-nginx-controller -n ingress-nginx --patch '{"data":{"strict-validate-path-type":"false"}}'


   Explain Code

2. Create an Ingress manifest file.

   console Copy

   $ nano linkerd-dashboard-ingress.yaml


   Explain Code

3. Add the following content. Replace linkerd.example.com with your domain.

   yaml Copy

   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: web-ingress
     namespace: linkerd-viz
     annotations:
       cert-manager.io/cluster-issuer: "letsencrypt-prod"
       nginx.ingress.kubernetes.io/upstream-vhost: web.linkerd-viz.svc.cluster.local:8084
       nginx.ingress.kubernetes.io/auth-type: basic
       nginx.ingress.kubernetes.io/auth-secret: web-ingress-auth
       nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required'
       nginx.ingress.kubernetes.io/proxy-body-size: "0"
       nginx.ingress.kubernetes.io/proxy-read-timeout: "600"
       nginx.ingress.kubernetes.io/proxy-send-timeout: "600"
   spec:
     ingressClassName: nginx
     tls:
     - hosts:
       - linkerd.example.com
       secretName: linkerd-dashboard-tls
     rules:
     - host: linkerd.example.com
       http:
         paths:
         - path: /
           pathType: Prefix
           backend:
             service:
               name: web
               port:
                 number: 8084


   Explain Code

   Save and close the file.

   This Ingress routes external traffic from your domain to the Linkerd dashboard service running in the linkerd-viz namespace. It enforces basic authentication, sets proxy timeouts, and ensures the request is sent to the correct backend service on port 8084.

4. Apply the Ingress manifest.

   console Copy

   $ kubectl apply -f linkerd-dashboard-ingress.yaml


   Explain Code

5. Verify the Ingress was created.

   console Copy

   $ kubectl get ingress -n linkerd-viz


   Explain Code

6. Verify the TLS certificate creation.

   console Copy

   $ kubectl get certificate -n linkerd-viz


   Explain Code

   Wait until the certificate shows READY as True.

Access the Dashboard

Access your secured Linkerd dashboard through the configured domain.

1. Open a web browser and navigate to your domain.

   https://linkerd.example.com

2. Enter the username and password you created earlier.

3. Explore the dashboard to view cluster metrics, service mesh topology, and traffic flow.

Deploy a Sample Application

Test Linkerd's features with the Emojivoto sample application.

1. Deploy the Emojivoto application.

   console Copy

   $ curl -sL https://run.linkerd.io/emojivoto.yml | kubectl apply -f -


   Explain Code

2. Verify the deployment.

   console Copy

   $ kubectl get pods -n emojivoto


   Explain Code

3. Add the application to the mesh.

   console Copy

   $ kubectl get -n emojivoto deploy -o yaml | linkerd inject - | kubectl apply -f -


   Explain Code

4. View the meshed application in the dashboard or via CLI.

   console Copy

   $ linkerd viz -n emojivoto stat deploy


   Explain Code

Configure Traffic Splitting

Implement canary deployments using traffic splitting.

1. Create a second version of the web deployment.

   console Copy

   $ kubectl get deploy web -n emojivoto -o yaml | \
       sed 's/name: web/name: web-v2/' | \
       kubectl apply -f -


   Explain Code

   This command copies the existing web Deployment, renames the copy to web-v2, and applies it to create a new Deployment.

2. Create a service for the new version.

   console Copy

   $ cat <<EOF | kubectl apply -f -
   apiVersion: v1
   kind: Service
   metadata:
     name: web-v2
     namespace: emojivoto
   spec:
     ports:
     - name: http
       port: 80
       targetPort: 80
     selector:
       app: web
       version: v2
   EOF


   Explain Code

   This Service exposes the web-v2 pods on port 80 inside the emojivoto namespace. It routes traffic to pods labeled app: web, version: v2.

3. Add the new deployment to the mesh.

   console Copy

   $ kubectl get deploy web-v2 -n emojivoto -o yaml | \
       linkerd inject - | \
       kubectl apply -f -


   Explain Code

   This command injects the Linkerd proxy into the web-v2 Deployment and updates the cluster so new pods run with the proxy.

4. Create a traffic split manifest.

   console Copy

   $ nano traffic-split.yaml


   Explain Code

5. Add the following content to the file:

   yaml Copy

   apiVersion: policy.linkerd.io/v1beta2
   kind: HTTPRoute
   metadata:
     name: web-route
     namespace: emojivoto
   spec:
     parentRefs:
       - name: web-svc
         kind: Service
         group: core
         port: 80
     rules:
       - backendRefs:
           - name: web-svc
             port: 80
             weight: 80
           - name: web-v2
             port: 80
             weight: 20


   Explain Code

   Save and close the file.

   This TrafficSplit sends 80% of requests to the original web-svc service and 20% to the new web-v2 service.

6. Apply the traffic split.

   console Copy

   $ kubectl apply -f traffic-split.yaml


   Explain Code

7. Verify traffic distribution in the dashboard or via CLI.

   console Copy

   $ linkerd viz -n emojivoto stat --from deploy/vote-bot deploy


   Explain Code

Conclusion

You have successfully installed Linkerd on a VKE cluster, exposed the dashboard securely through Nginx Ingress with TLS encryption and authentication, and deployed a sample application with traffic splitting capabilities. For more information about advanced Linkerd features, visit the official Linkerd documentation.
