How to Deploy ERPNext - Open-Source ERP and CRM Platform

ERPNext is an open-source enterprise resource planning (ERP) and customer relationship management (CRM) platform built on the Frappe framework. It includes modules for accounting, sales, purchasing, inventory, projects, human resources, and customer management, making it suitable for small to medium-sized businesses.

This article explains how to deploy ERPNext on a Linux server using Docker Compose with MariaDB for the database, Redis for caching and background job processing, and Traefik for automatic HTTPS. It covers directory setup, environment configuration, service deployment, and demonstrates the application by creating a company and customer records.

Prerequisites

Before you begin, you need to:

• Have access to a Linux-based server (with at least 2 CPU cores and 4 GB of RAM) as a non-root user with sudo privileges.
• Install Docker and Docker Compose.
• Create a DNS A record pointing to your server's IP address (for example, erpnext.example.com).

Set Up the Directory Structure, Configuration, and Environment Variables

ERPNext requires a project directory containing configuration files, environment variables, and database initialization scripts. The Docker Compose deployment uses these files to configure MariaDB, Redis, and the Frappe/ERPNext services.

1. Create the project directory with all required subdirectories.

   CONSOLE

   Copy

   $ mkdir -p ~/erpnext/mariadb-init

   Explain Code

   Powered by Vultr AgentBeta
   • mariadb-init/: Contains SQL initialization scripts that MariaDB executes on first startup to create the ERPNext database user.

2. Navigate to the project directory.

   CONSOLE

   Copy

   $ cd ~/erpnext

   Explain Code

   Powered by Vultr AgentBeta

3. Create the environment file.

   CONSOLE

   Copy

   $ nano .env

   Explain Code

   Powered by Vultr AgentBeta

   Add the following configuration:

   INI

   Copy

   # Domain and HTTPS configuration
   DOMAIN=erpnext.example.com
   LETSENCRYPT_EMAIL=admin@example.com

   # ERPNext version
   ERPNEXT_VERSION=v16.17.0

   # MariaDB credentials
   MYSQL_ROOT_PASSWORD=STRONG_ROOT_PASSWORD

   # ERPNext site credentials
   ADMIN_PASSWORD=STRONG_ADMIN_PASSWORD
   ERPNEXT_DB_NAME=erpnext
   ERPNEXT_DB_USER=erpnext
   ERPNEXT_DB_PASSWORD=STRONG_DB_PASSWORD

   Explain Code

   Powered by Vultr AgentBeta

   Replace:

   • erpnext.example.com with your domain name.
   • admin@example.com with your email address for Let's Encrypt notifications.
   • STRONG_ROOT_PASSWORD, STRONG_ADMIN_PASSWORD, and STRONG_DB_PASSWORD with secure passwords.

   Save and close the file.

4. Create the MariaDB initialization script. This script creates the database user required by ERPNext.

   CONSOLE

   Copy

   $ nano mariadb-init/01-erpnext-user.sql

   Explain Code

   Powered by Vultr AgentBeta

   Add the following content, replacing STRONG_DB_PASSWORD with the same value used for ERPNEXT_DB_PASSWORD in the .env file:

   SQL

   Copy

   CREATE USER IF NOT EXISTS 'erpnext'@'%' IDENTIFIED BY 'STRONG_DB_PASSWORD';
   GRANT ALL PRIVILEGES ON *.* TO 'erpnext'@'%';
   FLUSH PRIVILEGES;

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file.

Deploy with Docker Compose

Docker Compose orchestrates the ERPNext stack including MariaDB, Redis, Frappe backend services, background workers, websocket server, and Traefik reverse proxy. A one-time configurator container initializes shared settings, and a site creation container sets up the ERPNext application.

1. Create the Docker Compose file.

   CONSOLE

   Copy

   $ nano docker-compose.yml

   Explain Code

   Powered by Vultr AgentBeta

2. Add the following configuration.

   YAML

   Copy

   services:
     traefik:
       image: traefik:v3.7.0
       container_name: traefik
       command:
         - "--providers.docker=true"
         - "--providers.docker.exposedbydefault=false"
         - "--entrypoints.web.address=:80"
         - "--entrypoints.websecure.address=:443"
         - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
         - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
         - "--certificatesresolvers.letsencrypt.acme.httpchallenge=true"
         - "--certificatesresolvers.letsencrypt.acme.httpchallenge.entrypoint=web"
         - "--certificatesresolvers.letsencrypt.acme.email=${LETSENCRYPT_EMAIL}"
         - "--certificatesresolvers.letsencrypt.acme.storage=/letsencrypt/acme.json"
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - "/var/run/docker.sock:/var/run/docker.sock:ro"
         - "./letsencrypt:/letsencrypt"
       restart: unless-stopped

     db:
       image: mariadb:10.6
       container_name: erpnext-db
       command:
         - --character-set-server=utf8mb4
         - --collation-server=utf8mb4_unicode_ci
         - --skip-name-resolve
       environment:
         MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD}
       healthcheck:
         test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
         interval: 5s
         timeout: 5s
         retries: 20
       volumes:
         - ./db-data:/var/lib/mysql
         - ./mariadb-init:/docker-entrypoint-initdb.d:ro
       restart: unless-stopped

     redis-cache:
       image: redis:7-alpine
       container_name: erpnext-redis-cache
       restart: unless-stopped

     redis-queue:
       image: redis:7-alpine
       container_name: erpnext-redis-queue
       volumes:
         - ./redis-queue-data:/data
       restart: unless-stopped

     configurator:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-configurator
       entrypoint: >
         bash -c '
         bench set-config -g db_host db &&
         bench set-config -g db_port 3306 &&
         bench set-config -g redis_cache redis://redis-cache:6379 &&
         bench set-config -g redis_queue redis://redis-queue:6379 &&
         bench set-config -g redis_socketio redis://redis-queue:6379 &&
         bench set-config -g socketio_port 9000
         '
       depends_on:
         db:
           condition: service_healthy
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: "no"

     create-site:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-create-site
       entrypoint: >
         bash -c '
         if [ ! -f sites/${DOMAIN}/site_config.json ]; then
           bench new-site ${DOMAIN} \
             --db-host db \
             --db-port 3306 \
             --db-name ${ERPNEXT_DB_NAME} \
             --db-user ${ERPNEXT_DB_USER} \
             --db-password ${ERPNEXT_DB_PASSWORD} \
             --db-root-username root \
             --db-root-password ${MYSQL_ROOT_PASSWORD} \
             --mariadb-user-host-login-scope "%" \
             --admin-password ${ADMIN_PASSWORD} \
             --install-app erpnext;
         fi
         '
       environment:
         DOMAIN: ${DOMAIN}
         MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD}
         ADMIN_PASSWORD: ${ADMIN_PASSWORD}
         ERPNEXT_DB_NAME: ${ERPNEXT_DB_NAME}
         ERPNEXT_DB_USER: ${ERPNEXT_DB_USER}
         ERPNEXT_DB_PASSWORD: ${ERPNEXT_DB_PASSWORD}
       depends_on:
         configurator:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: "no"

     backend:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-backend
       depends_on:
         create-site:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: unless-stopped

     queue-short:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-queue-short
       command: ["bench", "worker", "--queue", "short,default"]
       depends_on:
         create-site:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: unless-stopped

     queue-long:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-queue-long
       command: ["bench", "worker", "--queue", "long,default,short"]
       depends_on:
         create-site:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: unless-stopped

     scheduler:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-scheduler
       command: ["bench", "schedule"]
       depends_on:
         create-site:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: unless-stopped

     websocket:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-websocket
       command: ["node", "/home/frappe/frappe-bench/apps/frappe/socketio.js"]
       depends_on:
         create-site:
           condition: service_completed_successfully
       volumes:
         - ./sites:/home/frappe/frappe-bench/sites
       restart: unless-stopped

     frontend:
       image: frappe/erpnext:${ERPNEXT_VERSION}
       container_name: erpnext-frontend
       command: ["nginx-entrypoint.sh"]
       environment:
         BACKEND: backend:8000
         SOCKETIO: websocket:9000
         FRAPPE_SITE_NAME_HEADER: ${DOMAIN}
         CLIENT_MAX_BODY_SIZE: 50m
         PROXY_READ_TIMEOUT: "120"
         UPSTREAM_REAL_IP_ADDRESS: 127.0.0.1
         UPSTREAM_REAL_IP_HEADER: X-Forwarded-For
         UPSTREAM_REAL_IP_RECURSIVE: "off"
       depends_on:
         backend:
           condition: service_started
         websocket:
           condition: service_started
       labels:
         - "traefik.enable=true"
         - "traefik.http.routers.erpnext.rule=Host(`${DOMAIN}`)"
         - "traefik.http.routers.erpnext.entrypoints=websecure"
         - "traefik.http.routers.erpnext.tls.certresolver=letsencrypt"
         - "traefik.http.services.erpnext.loadbalancer.server.port=8080"
       restart: unless-stopped

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file.

   In the above manifest:

   • services: Launches eleven containers managed by Docker Compose:
     • traefik: Serves as the reverse proxy and TLS termination point with automatic Let's Encrypt certificate provisioning.
     • db: MariaDB 10.6 database that stores ERPNext application data.
     • redis-cache: Redis instance for caching frequently accessed data.
     • redis-queue: Redis instance for background job queues with persistent storage.
     • configurator: One-time container that writes shared settings to common_site_config.json.
     • create-site: One-time container that initializes the ERPNext site and installs the application.
     • backend: Frappe application server that handles API requests.
     • queue-short and queue-long: Background workers that process asynchronous jobs.
     • scheduler: Runs scheduled tasks and cron jobs.
     • websocket: Node.js server for real-time updates and notifications.
     • frontend: Nginx server that serves static assets and proxies requests to the backend.
   • healthcheck (db): Ensures dependent services wait until MariaDB is fully initialized.
   • depends_on: Controls startup order so configurator runs before site creation, and site creation completes before application services start.
   • labels (frontend): Registers the frontend container with Traefik for HTTPS routing.
   • volumes: Provides persistent storage for TLS certificates, database files, Redis data, and ERPNext site files.
   • restart: unless-stopped: Enables automatic recovery after failures or server reboots.

3. Create the sites directory and seed it with the default configuration files baked into the ERPNext image. Docker only auto-populates a named volume from an image's existing directory contents. A bind mount like ./sites stays empty unless you copy those files in yourself.

   CONSOLE

   Copy

   $ mkdir -p sites
   $ docker run --rm -v $(pwd)/sites:/bootstrap-sites frappe/erpnext:v16.17.0 bash -c "cp -a /home/frappe/frappe-bench/sites/. /bootstrap-sites/"

   Explain Code

   Powered by Vultr AgentBeta

4. The frappe user inside the ERPNext containers runs as UID 1000. Set matching ownership on the sites directory so the containers can write to it.

   CONSOLE

   Copy

   $ sudo chown -R 1000:1000 sites

   Explain Code

   Powered by Vultr AgentBeta

5. Build and start all services in detached mode.

   CONSOLE

   Copy

   $ docker compose up -d

   Explain Code

   Powered by Vultr AgentBeta

   The site creation process runs in the background and installs database schemas and application modules.

6. Monitor the site creation progress.

   CONSOLE

   Copy

   $ docker compose logs -f create-site

   Explain Code

   Powered by Vultr AgentBeta

   Wait until the installation completes. The output shows a progress bar for each stage, starting with Installing frappe... and Updating DocTypes for frappe, then Installing erpnext... and Updating DocTypes for erpnext, each reaching 100%.

   Press Ctrl+C to exit the log viewer after installation completes.

7. Verify all services are running.

   CONSOLE

   Copy

   $ docker compose ps -a

   Explain Code

   Powered by Vultr AgentBeta

   The output displays ten running containers and two completed initialization containers. All containers should show Up except erpnext-configurator and erpnext-create-site, which show Exited (0) after completing their initialization tasks.

8. Verify the site directory was created.

   CONSOLE

   Copy

   $ docker compose exec backend ls sites

   Explain Code

   Powered by Vultr AgentBeta

   The output lists apps.json, apps.txt, assets, common_site_config.json, and a directory matching your domain, confirming the ERPNext site was initialized with its configuration files and site directory.

Access and Configure ERPNext

After deployment, access the ERPNext web interface to complete the initial setup wizard and configure the application.

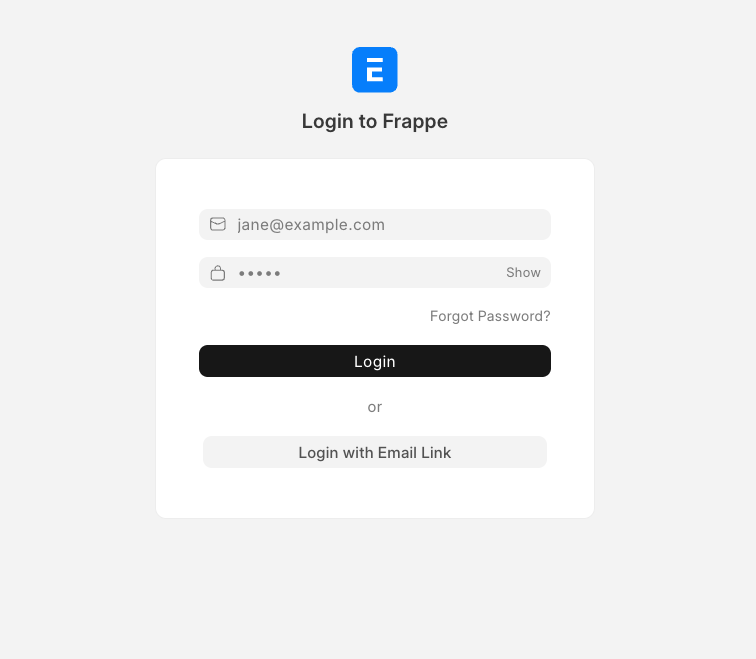

1. Open a web browser and navigate to https://erpnext.example.com. Replace erpnext.example.com with your configured domain.



2. Log in with the administrator credentials.

   • Username: Administrator
   • Password: The value of ADMIN_PASSWORD from the .env file.

3. Complete the setup wizard by configuring language, country, timezone, and currency settings.

4. Create your company profile by entering the company name, abbreviation, and default currency.

   After completing the wizard, the ERPNext dashboard displays with access to all ERP modules.

Verify the ERPNext Application

Creating basic records confirms that ERPNext modules are functioning correctly and the database is properly connected.

1. Create a customer record. Click the search bar, type Customer, and select New Customer. Enter the customer name and type, then click Save.

2. Create a lead record. Click the search bar, type Lead, and select New Lead. Enter the lead name and source, then click Save.

3. Verify the records appear in the respective lists by searching for Customer List and Lead List.

Conclusion

You have deployed ERPNext on a Linux server using Docker Compose with MariaDB for the database, Redis for caching and job queues, and Traefik for automatic HTTPS. The deployment includes background workers for asynchronous processing and a websocket server for real-time updates. For advanced configuration, module customization, and production hardening, refer to the official ERPNext documentation.
