How to Deploy Gitea – Self-Hosted Git Platform

Gitea is a lightweight, self-hosted Git service that offers features such as repository hosting, pull requests, issues, SSH/HTTPS access, a built-in web editor, and CI integrations. You can run Gitea on any Linux server and access it securely via web browser.

This article demonstrates how to deploy Gitea on Ubuntu 24.04 using Docker Compose and secure it with HTTPS via a Traefik reverse proxy.

Prerequisites

Before you begin:

• Have access to an Ubuntu 24.04 server as a non-root user with sudo privileges.
• Install Docker and Docker Compose.
• Configure a domain name, such as gitea.example.com, to point to your server’s public IP address.

Set Up the Directory Structure and Env Variables

Set up the project directory to store persistent Gitea, MariaDB, and Let's Encrypt files.

1. Create folders to store Gitea data, database files, and Let's Encrypt certificates.

   CONSOLE

   Copy

   $ mkdir -p ~/gitea/{data,db,letsencrypt}

   Explain Code

   Powered by Vultr AgentBeta
   • data - Gitea repositories, configs, SSH keys.
   • db - MariaDB database files.
   • letsencrypt - Traefik ACME certificates.

2. Navigate to the root Gitea directory.

   CONSOLE

   Copy

   $ cd ~/gitea

   Explain Code

   Powered by Vultr AgentBeta

3. Create a .env file to store environment variables.

   CONSOLE

   Copy

   $ nano .env

   Explain Code

   Powered by Vultr AgentBeta

   Add these values:

   INI

   Copy

   GITEA_DB_USER=gitea
   GITEA_DB_PASS=STRONG_APP_PASSWORD
   MYSQL_ROOT_PASS=STRONG_MYSQL_ROOT_PASSWORD
   GITEA_DB_NAME=giteadb
   GITEA_DOMAIN=gitea.example.com
   LETSENCRYPT_EMAIL=admin@example.com

   Explain Code

   Powered by Vultr AgentBeta

   In the above file, replace:

   • STRONG_APP_PASSWORD with a secure password for the Gitea DB user.
   • STRONG_MYSQL_ROOT_PASSWORD with a secure password for the MySQL root user.
   • gitea.example.com with your domain.
   • admin@example.com with your email.

   Save and close the file.

Deploy with Docker Compose

Deploy Gitea with Docker Compose, Traefik as reverse proxy, and MariaDB for storage.

1. Add your user account to the docker user group.

   CONSOLE

   Copy

   $ sudo usermod -aG docker $USER

   Explain Code

   Powered by Vultr AgentBeta

2. Apply new group membership.

   CONSOLE

   Copy

   $ newgrp docker

   Explain Code

   Powered by Vultr AgentBeta

3. Create and edit a Docker Compose manifest file.

   CONSOLE

   Copy

   $ nano docker-compose.yml

   Explain Code

   Powered by Vultr AgentBeta

4. Add the following contents:

   YAML

   Copy

   services:
     traefik:
       image: traefik:latest
       container_name: traefik
       restart: unless-stopped
       environment:
         DOCKER_API_VERSION: "1.44"
       command:
         - "--providers.docker=true"
         - "--providers.docker.exposedbydefault=false"
         - "--entrypoints.web.address=:80"
         - "--entrypoints.websecure.address=:443"
         - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
         - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
         - "--certificatesresolvers.le.acme.httpchallenge=true"
         - "--certificatesresolvers.le.acme.httpchallenge.entrypoint=web"
         - "--certificatesresolvers.le.acme.email=${LETSENCRYPT_EMAIL}"
         - "--certificatesresolvers.le.acme.storage=/letsencrypt/acme.json"
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - /var/run/docker.sock:/var/run/docker.sock:ro
         - ./letsencrypt:/letsencrypt

     db:
       image: mariadb:latest
       container_name: gitea-db
       restart: unless-stopped
       environment:
         - MYSQL_ROOT_PASSWORD=${MYSQL_ROOT_PASS}
         - MYSQL_DATABASE=${GITEA_DB_NAME}
         - MYSQL_USER=${GITEA_DB_USER}
         - MYSQL_PASSWORD=${GITEA_DB_PASS}
       volumes:
         - ./db:/var/lib/mysql

     gitea:
       image: gitea/gitea:latest
       container_name: gitea
       restart: unless-stopped
       depends_on:
         - db
       environment:
         - USER_UID=1000
         - USER_GID=1000
         - DB_TYPE=mysql
         - DB_HOST=db:3306
         - DB_NAME=${GITEA_DB_NAME}
         - DB_USER=${GITEA_DB_USER}
         - DB_PASSWD=${GITEA_DB_PASS}
         - ROOT_URL=https://${GITEA_DOMAIN}
       volumes:
         - ./data:/data
       labels:
         - "traefik.enable=true"
         - "traefik.http.routers.gitea.rule=Host(`${GITEA_DOMAIN}`)"
         - "traefik.http.routers.gitea.entrypoints=websecure"
         - "traefik.http.routers.gitea.tls=true"
         - "traefik.http.routers.gitea.tls.certresolver=le"
         - "traefik.http.services.gitea.loadbalancer.server.port=3000"

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file.

   This Docker Compose file deploys Gitea behind Traefik, enabling secure HTTPS access using Let’s Encrypt. Each service has a specific purpose:

   • gitea service

     • Runs the Gitea application container, providing the Git hosting interface.
     • Stores repositories, SSH keys, and config in the ./data directory.
     • Connects to MariaDB using database credentials from your .env file.
     • Advertises itself to Traefik using labels so Traefik can route traffic for your domain to the Gitea web interface over HTTPS.
     • Exposes its internal port 3000 for the web UI.

   • db service (MariaDB)

     • Stores all Gitea metadata such as users, repositories, issues, and pull requests.
     • Uses the ./db directory for persistent data.
     • Initializes the database using values provided in the .env file.

   • traefik service

     • Listens on ports 80 and 443 and handles all incoming traffic.
     • Automatically provisions and renews SSL certificates via Let’s Encrypt using the ACME HTTP-01 challenge.
     • Reads labels from the Gitea container to route traffic to it securely.
     • Stores certificate data in the ./letsencrypt directory.

5. Start all services in detached mode.

   CONSOLE

   Copy

   $ docker compose up -d

   Explain Code

   Powered by Vultr AgentBeta

6. Check container status.

   CONSOLE

   Copy

   $ docker compose ps

   Explain Code

   Powered by Vultr AgentBeta

   You should see gitea, gitea-db, and traefik listed as "Up".

   Note

   For more information on managing a Docker Compose stack, see the How To Use Docker Compose article.

Access and Configure Gitea

1. Open your browser and visit your Gitea domain https://gitea.example.com.

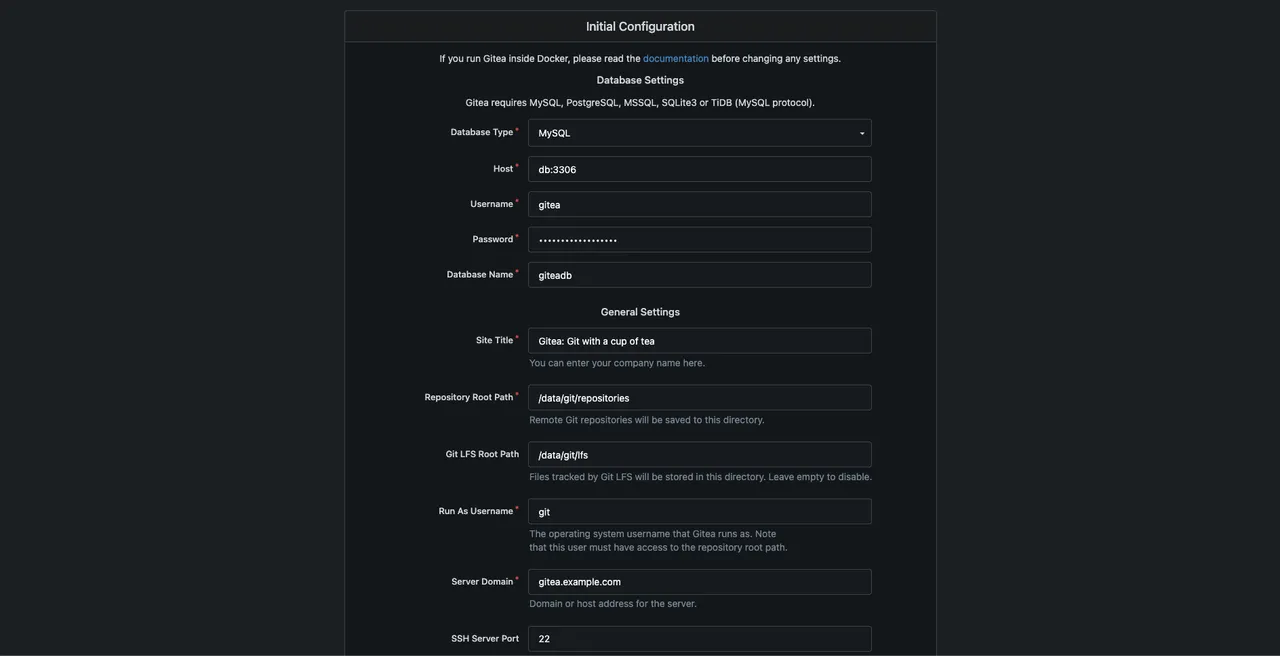

   You should see the Initial Configuration page. Leave the Database settings to their default values.

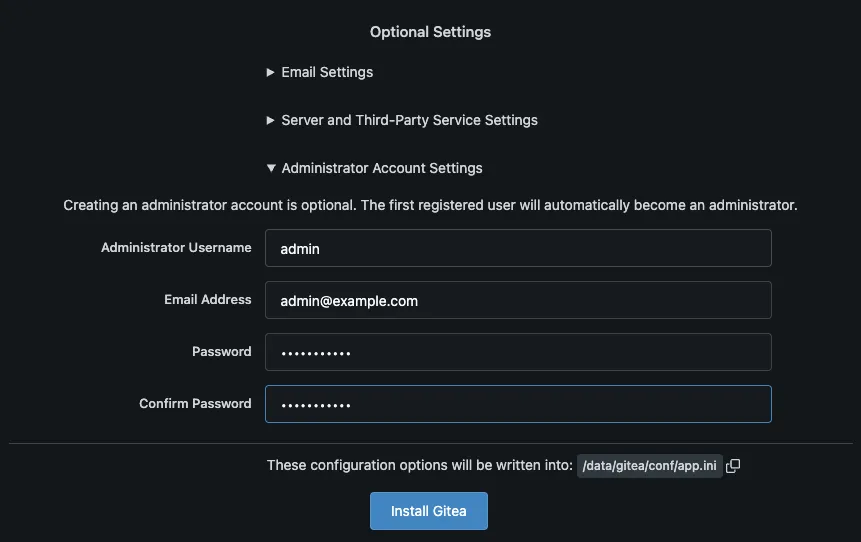

2. Scroll down to the Optional Settings section, and expand the Administrator Account Settings. Fill in the values to create an Administrator user.



3. Click the Install Gitea button to finish the installation process. After installation, the dashboard loads. You now have a fully functional and secure Gitea installation.

Conclusion

By following this article, you successfully deployed Gitea on Ubuntu 24.04 using Docker Compose and secured it with Traefik. Your Git service now supports HTTPS, automatic TLS renewal, repository hosting, and all Gitea’s built-in features. For more details, visit the Gitea documentation.
