How to Deploy GitLab CE – DevOps Management Suite

GitLab CE (Community Edition) is a complete, open-source DevOps platform. Unlike lightweight alternatives, GitLab provides a comprehensive suite of tools in a single application, including source code management, CI/CD pipelines, security testing, and project planning.

This article demonstrates how to deploy GitLab CE on Ubuntu 24.04 using Docker Compose and secure it with HTTPS via a Traefik reverse proxy.

Prerequisites

Before you begin:

• Have access to an Ubuntu 24.04 server as a non-root user with sudo privileges. Refer the official Gitlab installation requirements page to estimate the system requirements for your workload.
• Install Docker and Docker Compose.
• Configure a domain name, such as gitlab.example.com, to point to your server’s public IP address.

Set Up the Directory Structure and Environment Variables

Set up the project directory to store persistent GitLab configuration, logs, data, and Let's Encrypt certificates.

1. Create folders to store GitLab volumes and Let's Encrypt certificates.

   CONSOLE

   Copy

   $ mkdir -p ~/gitlab/{config,logs,data,letsencrypt}

   Explain Code

   Powered by Vultr AgentBeta
   • config - GitLab configuration files.
   • logs - Logs for the various bundled services.
   • data - Repositories and database data.
   • letsencrypt - Traefik ACME certificates.

2. Navigate to the root GitLab directory.

   CONSOLE

   Copy

   $ cd ~/gitlab

   Explain Code

   Powered by Vultr AgentBeta

3. Create a file named .env in the project directory to store the environment variables.

   CONSOLE

   Copy

   $ nano .env

   Explain Code

   Powered by Vultr AgentBeta

   Add these values:

   INI

   Copy

   GITLAB_DOMAIN=gitlab.example.com
   LETSENCRYPT_EMAIL=admin@example.com

   Explain Code

   Powered by Vultr AgentBeta

   Replace gitlab.example.com with your domain and admin@example.com with your email. Save and close the file.

Deploy with Docker Compose

Deploy GitLab with Docker Compose using the official Omnibus image and Traefik as the reverse proxy.

1. Add your user account to the docker user group.

   CONSOLE

   Copy

   $ sudo usermod -aG docker $USER

   Explain Code

   Powered by Vultr AgentBeta

2. Apply new group membership.

   CONSOLE

   Copy

   $ newgrp docker

   Explain Code

   Powered by Vultr AgentBeta

3. Create and edit a Docker Compose manifest file.

   CONSOLE

   Copy

   $ nano docker-compose.yml

   Explain Code

   Powered by Vultr AgentBeta

4. Add the following contents:

   YAML

   Copy

   services:
     traefik:
       image: traefik:latest
       container_name: traefik
       restart: unless-stopped
       environment:
         DOCKER_API_VERSION: "1.44"
       command:
         - "--providers.docker=true"
         - "--providers.docker.exposedbydefault=false"
         - "--entrypoints.web.address=:80"
         - "--entrypoints.websecure.address=:443"
         - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
         - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
         - "--certificatesresolvers.le.acme.httpchallenge=true"
         - "--certificatesresolvers.le.acme.httpchallenge.entrypoint=web"
         - "--certificatesresolvers.le.acme.email=${LETSENCRYPT_EMAIL}"
         - "--certificatesresolvers.le.acme.storage=/letsencrypt/acme.json"
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - /var/run/docker.sock:/var/run/docker.sock:ro
         - ./letsencrypt:/letsencrypt

     gitlab:
       image: gitlab/gitlab-ce:latest
       container_name: gitlab
       restart: always
       hostname: ${GITLAB_DOMAIN}
       shm_size: '256m'
       environment:
         GITLAB_OMNIBUS_CONFIG: |
           external_url 'https://${GITLAB_DOMAIN}'
           nginx['listen_port'] = 80
           nginx['listen_https'] = false
           nginx['proxy_set_headers'] = {
             "X-Forwarded-Proto" => "https",
             "X-Forwarded-Ssl" => "on"
           }
           gitlab_rails['gitlab_shell_ssh_port'] = 2222
       ports:
         - "2222:22"
       volumes:
         - ./config:/etc/gitlab
         - ./logs:/var/log/gitlab
         - ./data:/var/opt/gitlab
       labels:
         - "traefik.enable=true"
         - "traefik.http.routers.gitlab.rule=Host(`${GITLAB_DOMAIN}`)"
         - "traefik.http.routers.gitlab.entrypoints=websecure"
         - "traefik.http.routers.gitlab.tls=true"
         - "traefik.http.routers.gitlab.tls.certresolver=le"
         - "traefik.http.services.gitlab.loadbalancer.server.port=80"

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file. This Docker Compose file deploys GitLab CE behind Traefik, enabling secure HTTPS access using Let’s Encrypt. Each service has a specific purpose:

   gitlab service

   • Runs the official gitlab/gitlab-ce Omnibus image, providing the full GitLab platform including repositories, issues, CI/CD pipelines, container registry, and administrative tools.

   • Stores configuration, logs, and persistent application data in the ./config, ./logs, and ./data directories.

   • Uses the GITLAB_OMNIBUS_CONFIG environment block to:

     • Set the external URL to your domain.
     • Disable GitLab’s internal HTTPS listener so Traefik can handle TLS termination.
     • Pass required reverse proxy headers so GitLab recognizes HTTPS correctly.
     • Configure the SSH service to use port 2222 on the host to avoid conflicts with the host operating system’s SSH server.

   • Exposes port 80 internally for the web interface, while Traefik routes external HTTPS traffic to this internal port.

   traefik service

   • Listens on ports 80 and 443 on the host, allowing it to receive and route all incoming HTTP/HTTPS traffic.
   • Automatically provisions and renews TLS certificates using Let’s Encrypt via the ACME HTTP-01 challenge.
   • Uses Docker labels on the GitLab container to discover the service and route traffic for your domain (${GITLAB_DOMAIN}) to GitLab over HTTPS.
   • Stores certificates in the ./letsencrypt directory.
   • Ensures all HTTP requests are redirected to HTTPS for secure access.

5. Start all services in detached mode.

   CONSOLE

   Copy

   $ docker compose up -d

   Explain Code

   Powered by Vultr AgentBeta

6. Check container status.

   CONSOLE

   Copy

   $ docker compose ps

   Explain Code

   Powered by Vultr AgentBeta

   GitLab takes a few minutes to start the first time. The container status may say health: starting for several minutes before the web interface is accessible.

   Note

   For more information on managing a Docker Compose stack, see the How To Use Docker Compose article.

Access and Configure GitLab

1. Retrieve the initial root password. GitLab generates a random password for the root user on the first run.

   CONSOLE

   Copy

   $ sudo docker exec -it gitlab grep 'Password:' /etc/gitlab/initial_root_password

   Explain Code

   Powered by Vultr AgentBeta

   Copy the password string displayed in the output.

   Note

   This file is automatically deleted after 24 hours. Ensure you change your password immediately after logging in.

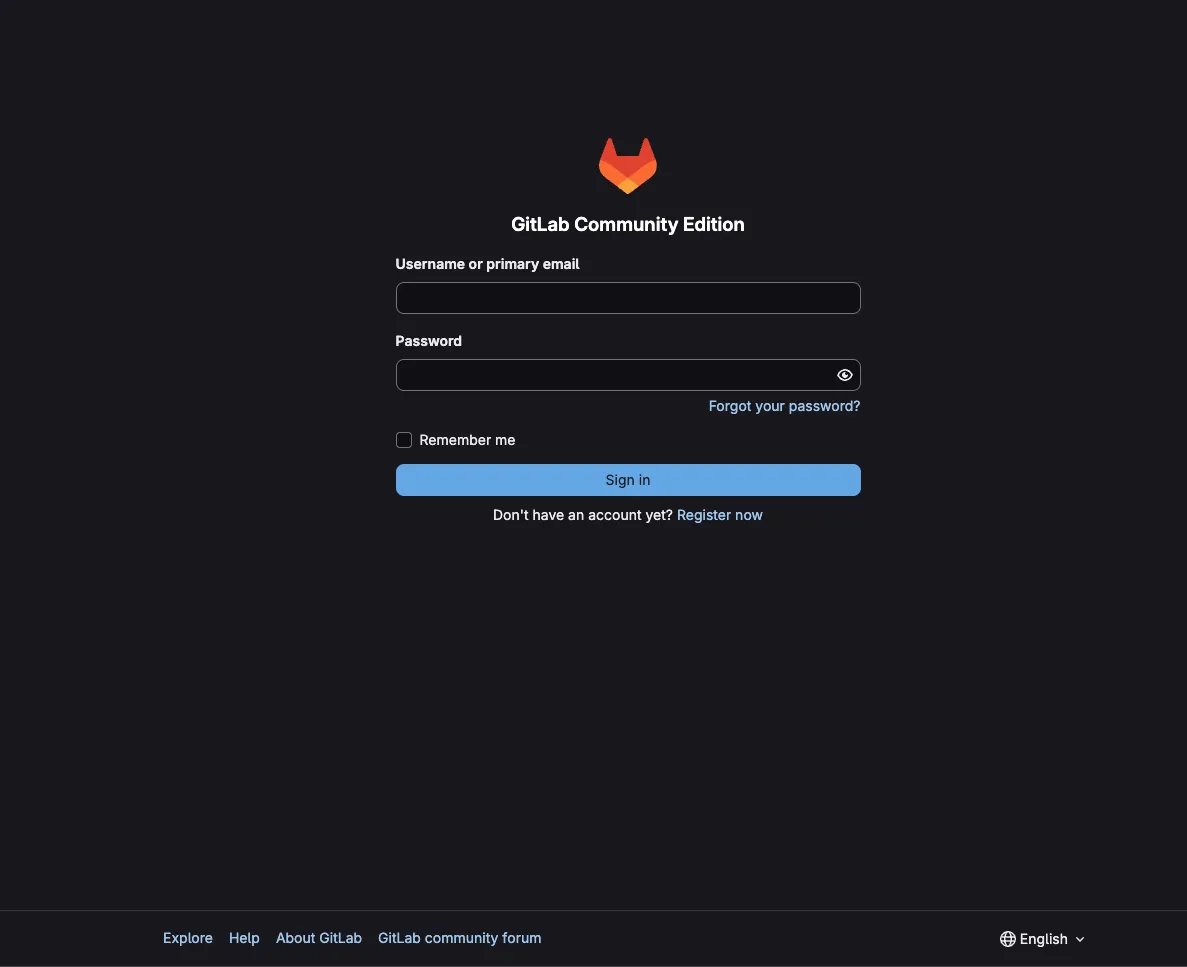

2. Open your browser and visit your GitLab domain https://gitlab.example.com.



3. Log in using the username root and the password you retrieved in the previous step.

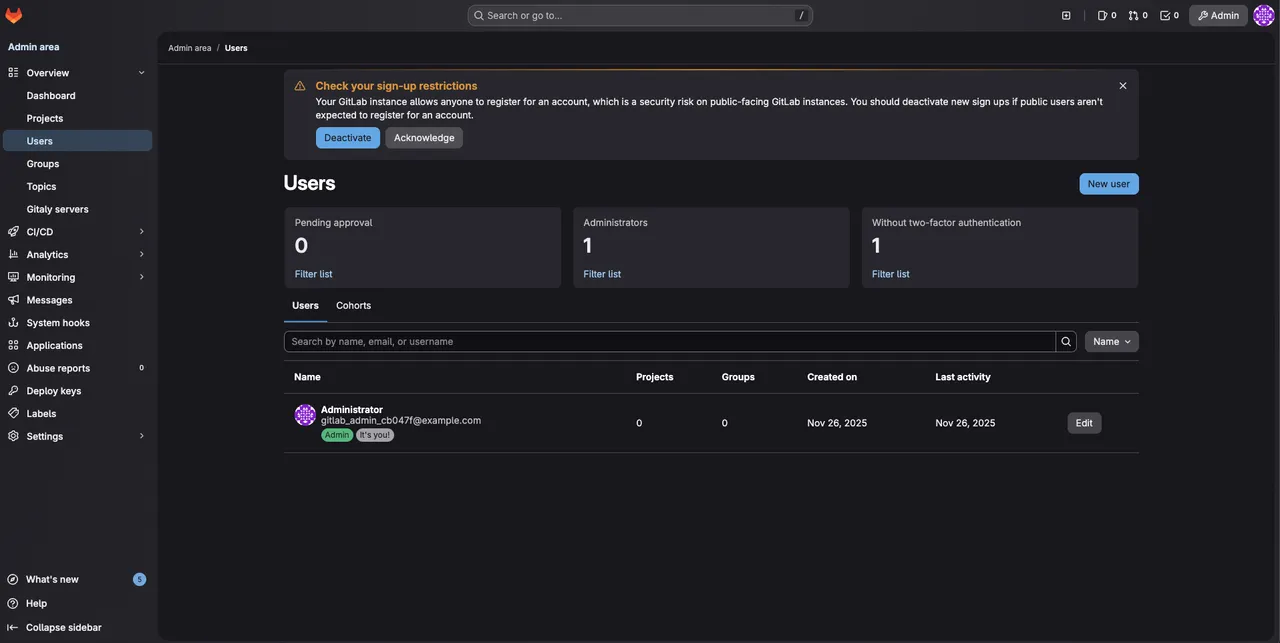

4. Once logged in, navigate to Admin area > Users to create a new user and set a new, secure password.



Conclusion

By following this article, you successfully deployed GitLab CE on Ubuntu 24.04 using Docker Compose. You have configured Traefik to handle HTTPS termination and mapped a custom SSH port for repository interaction. For more information, refer to GitLab Docs.
