How to Deploy Vault – Secret & Key Management

HashiCorp Vault is a centralized secrets management system that protects sensitive data using identity-based access controls. It provides a unified interface for securely handling passwords, tokens, certificates, and encryption keys across distributed systems.

This article demonstrates how to deploy a production-ready HashiCorp Vault instance on Ubuntu 24.04 using Docker Compose. It is configured with Raft Integrated Storage for high-availability data persistence and secured with HTTPS via a Traefik reverse proxy.

Prerequisites

Before you begin:

• Have access to an Ubuntu 24.04 server as a non-root user with sudo privileges.
• Install Docker and Docker Compose.
• Configure a domain name, such as vault.example.com, to point to your server’s public IP address.

Set Up the Directory Structure, Configuration, and Environment Variables

HashiCorp Vault requires persistent storage for its Raft data, audit logs, TLS certificates, and configuration files, along with environment variables that specify its domain and Let’s Encrypt email. This section covers creating the folders, the vault.hcl configuration file, and the .env file that Docker Compose uses to load domain and email values automatically.

1. Create folders to store Vault data, configuration, and logs.

   CONSOLE

   Copy

   $ mkdir -p ~/vault/{config,data,logs,letsencrypt}

   Explain Code

   Powered by Vultr AgentBeta
   • config - Stores the vault.hcl configuration file.
   • data - Persistent storage for the Raft backend (encrypted secrets).
   • logs - Audit logs.
   • letsencrypt - Traefik ACME certificates.

2. The Vault container runs as UID 100. Change the ownership of data and logs to UID 100 to allow writing to these directories.

   CONSOLE

   Copy

   $ sudo chown -R 100:100 ~/vault/data ~/vault/logs

   Explain Code

   Powered by Vultr AgentBeta

3. Navigate to the root Vault directory.

   CONSOLE

   Copy

   $ cd ~/vault

   Explain Code

   Powered by Vultr AgentBeta

4. Create the Vault configuration file.

   CONSOLE

   Copy

   $ nano config/vault.hcl

   Explain Code

   Powered by Vultr AgentBeta

5. Add the following configuration:

   INI

   Copy

   ui = true

   storage "raft" {
     path    = "/vault/data"
     node_id = "node1"
   }

   listener "tcp" {
     address     = "0.0.0.0:8200"
     tls_disable = "true"
   }

   api_addr = "https://vault.example.com"
   cluster_addr = "http://vault:8201"
   disable_mlock = false

   Explain Code

   Powered by Vultr AgentBeta

   Replace vault.example.com with your actual domain. Save and close the file.

   The above configuration defines Vault's core operational parameters. Within the configuration:

   • ui = true: Enables Vault's web-based user interface for easier management.
   • storage "raft" { ... }: Configures Raft as the storage backend for high-availability data persistence, with data stored in /vault/data and a unique node ID.
   • listener "tcp" { ... }: Sets up an HTTP listener on port 8200 (TLS disabled since Traefik handles encryption).
   • api_addr: Specifies the public HTTPS address clients use to access Vault.
   • cluster_addr: Defines the internal address for cluster communication between Vault nodes.
   • disable_mlock = false: Keeps memory locking enabled so Vault can prevent sensitive data from being swapped to disk. Since the container includes the IPC_LOCK capability, Vault is allowed to lock memory safely in this deployment.

6. Create an .env file to store your email for Let's Encrypt and your domain.

   CONSOLE

   Copy

   $ nano .env

   Explain Code

   Powered by Vultr AgentBeta

7. Add the following content. Replace vault.example.com with your actual domain and admin@example.com with your email address.

   INI

   Copy

   VAULT_DOMAIN=vault.example.com
   LETSENCRYPT_EMAIL=admin@example.com

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file.

Deploy with Docker Compose

This section covers the deployment of HashiCorp Vault using Docker Compose. The configuration includes Traefik to act as a reverse proxy. This setup offloads SSL termination to Traefik, ensuring secure HTTPS communication without requiring direct certificate management within Vault.

1. Add your user account to the docker user group.

   CONSOLE

   Copy

   $ sudo usermod -aG docker $USER

   Explain Code

   Powered by Vultr AgentBeta

2. Apply new group membership.

   CONSOLE

   Copy

   $ newgrp docker

   Explain Code

   Powered by Vultr AgentBeta

3. Create the Docker Compose manifest file.

   CONSOLE

   Copy

   $ nano docker-compose.yml

   Explain Code

   Powered by Vultr AgentBeta

4. Add the following contents:

   YAML

   Copy

   services:
     traefik:
       image: traefik:latest
       container_name: traefik
       restart: unless-stopped
       environment:
         DOCKER_API_VERSION: "1.44"
       command:
         - "--providers.docker=true"
         - "--providers.docker.exposedbydefault=false"
         - "--entrypoints.web.address=:80"
         - "--entrypoints.websecure.address=:443"
         - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
         - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
         - "--certificatesresolvers.le.acme.httpchallenge=true"
         - "--certificatesresolvers.le.acme.httpchallenge.entrypoint=web"
         - "--certificatesresolvers.le.acme.email=${LETSENCRYPT_EMAIL}"
         - "--certificatesresolvers.le.acme.storage=/letsencrypt/acme.json"
       ports:
         - "80:80"
         - "443:443"
       volumes:
         - /var/run/docker.sock:/var/run/docker.sock:ro
         - ./letsencrypt:/letsencrypt

     vault:
       image: hashicorp/vault:latest
       container_name: vault
       restart: unless-stopped
       cap_add:
         - IPC_LOCK
       ports:
         - "8200:8200"
       volumes:
         - ./config:/vault/config
         - ./data:/vault/data
         - ./logs:/vault/logs
       environment:
         VAULT_ADDR: "http://127.0.0.1:8200"
         VAULT_API_ADDR: "http://127.0.0.1:8200"
       command: server
       labels:
         - "traefik.enable=true"
         - "traefik.http.routers.vault.rule=Host(`${VAULT_DOMAIN}`)"
         - "traefik.http.routers.vault.entrypoints=websecure"
         - "traefik.http.routers.vault.tls=true"
         - "traefik.http.routers.vault.tls.certresolver=le"
         - "traefik.http.services.vault.loadbalancer.server.port=8200"

   Explain Code

   Powered by Vultr AgentBeta

   Save and close the file. This Docker Compose configuration deploys HashiCorp Vault behind Traefik, which handles HTTPS termination and certificate automation. Vault runs with Raft Integrated Storage for durability and relies on Traefik for secure external access. Each service has a dedicated role within the stack:

   vault service

   • Runs the official hashicorp/vault image in server mode.
   • Mounts the Vault configuration under ./config, Raft storage under ./data, and audit logs under ./logs.
   • Uses cap_add: IPC_LOCK to allow memory locking so Vault can prevent sensitive data from being swapped to disk (recommended for production).
   • Exposes port 8200 internally, while Traefik handles all external HTTPS traffic.
   • Reads its operational settings from the vault.hcl file located in the mounted config directory.
   • Registers routing rules with Traefik so requests for https://${VAULT_DOMAIN} are forwarded to Vault over port 8200.

   traefik service

   • Listens on ports 80 and 443 to receive all incoming connections.
   • Manages HTTPS certificates through Let’s Encrypt using the ACME HTTP-01 challenge.
   • Automatically renews certificates and redirects all HTTP traffic to HTTPS.
   • Reads Docker labels from the Vault container to set routing rules for your Vault domain.
   • Stores certificate data in the ./letsencrypt directory.

5. Start all services in detached mode.

   CONSOLE

   Copy

   $ docker compose up -d

   Explain Code

   Powered by Vultr AgentBeta

6. Check the container status.

   CONSOLE

   Copy

   $ docker compose ps

   Explain Code

   Powered by Vultr AgentBeta

   Both vault and traefik should show a status of Up.

   Note

   For more information on managing a Docker Compose stack, see the How To Use Docker Compose article.

Initialize and Unseal Vault

Vault starts in a "Sealed" state. The data is encrypted, and Vault cannot access it until you provide the unseal keys.

1. Run the following command in your terminal to generate the master keys. This executes the initialization tool directly inside the running container.

   CONSOLE

   Copy

   $ docker exec -it vault vault operator init

   Explain Code

   Powered by Vultr AgentBeta

   The output contains 5 Unseal Keys and an Initial Root Token.

   Note

   Copy all the Unseal Keys and the Root Token, and store them safely. If you lose these keys, you lose access to your data permanently. There is no password reset for Vault.

2. Access the Vault UI by visiting https://vault.example.com.

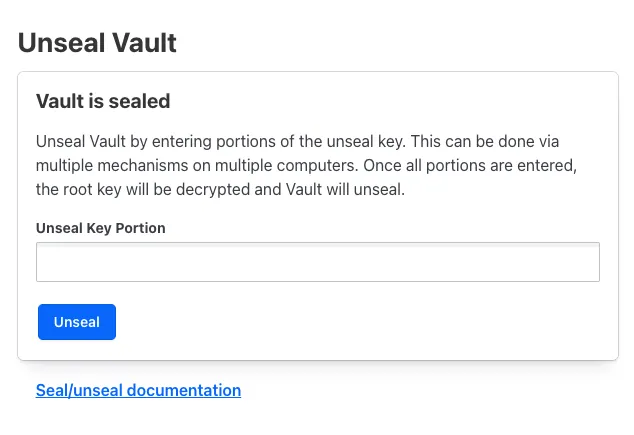

3. Vault requires a "quorum" of keys to unlock. Copy Unseal Key 1 from from the output of step 1, paste it into the box, and click Unseal.

4. Repeat the process by entering two more Unseal Keys. Once 3 valid keys are entered, the Sign in page loads.

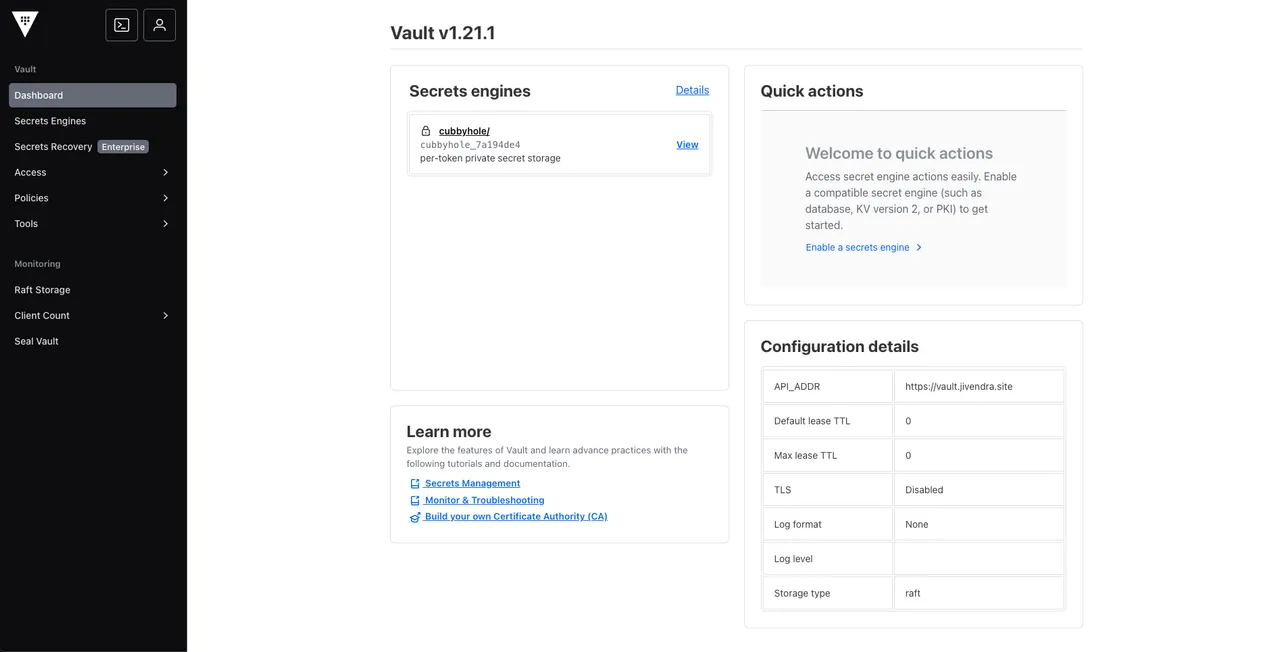

5. Enter the Initial Root token from the output of step 1 in the Token field. The Vault dashboard loads.



Conclusion

You have successfully deployed a secure HashiCorp Vault instance on Ubuntu 24.04. Your setup uses Raft Integrated Storage for data durability and Traefik for automatic HTTPS. For more information, refer to the Vault documentation.
