How to Install and Use Istio on Vultr Kubernetes Engine (VKE)

Introduction

Istio is a service mesh implementation that enables observability of your services to monitor how services communicate with each other through a visual dashboard. In addition, Istio also allows you to simplify the canary deployment process so that you can safely deploy a new version of your application to a small number of users and monitor how they interact with it. It also supports the mutual transport layer security (mutual TLS) for requests sent amongst your services, which adds an extra layer of security defense system for your cluster applications.

Istio consists of two main components, the data and control planes as below:

• The data plane is a group of proxies that enable communication between your services.
• The control plane manages the proxies to apply observability, traffic management, and security enhancement.

This article explains how to install and use Istio on a Vultr Kubernetes Engine (VKE) Cluster. You are to apply Istio to your applications to achieve observability, traffic management, and security improvement in your cluster.

Prerequisites

Before you begin, you should:

• Deploy a VKE cluster with at least 3 nodes
• Deploy a Ubuntu management server to work as the client machine to connect to the VKE cluster

On the management machine:

• Using SSH, access the server
• Create a non-root user with sudo privileges and switch to the account
• Install Kubectl to access the VKE cluster
• Install Nginx to enable access to the Kiali dashboard

Installation

Install the Istio Command Line tool

1. Download and install istioctl that lets you install Istio components to your cluster

    $ curl -L https://istio.io/downloadIstio | sh -


2. Switch to the downloaded Istio directory. Replace 1.18.2 with your actual Istio version number

    $ cd istio-1.18.2


3. Add the istioctl command to your environment variables to allow usage from any directory.

    $ export PATH=$PWD/bin:$PATH


4. Verify that you can access the istioctl tool

    $ istioctl

   Output:

    Istio configuration command line utility for service operators to
    debug and diagnose their Istio mesh.

    Usage:
      istioctl [command]

      Available Commands:

Export the Kubernetes Environment Variable

To connect to your VKE cluster, verify that you installed kubectl, then export the KUBECONFIG environment variable with your VKE cluster YAML file as described below.

1. Export the KUBECONFIG environment variable with the path to your VKE configuration file

    $ export KUBECONFIG=/home/user/downloads/vke-config-file.yaml


2. View the cluster notes to verify that kubectl connects to the VKE cluster

    $ kubectl get nodes

   You should see a similar result as below:

    NAME                STATUS   ROLES    AGE     VERSION
    test-46b7042bfeea   Ready    <none>   4d16h   v1.27.2
    test-682460cea1fb   Ready    <none>   4d16h   v1.27.2
    test-df51b2c65bc2   Ready    <none>   4d16h   v1.27.2

Install Istio Components on the VKE Cluster

Istio supports built-in configuration profiles and customized profiles to match the vendor-specific platform. Use the default profile to deploy Istio in production deployment. For this article, use the demo profile to install Istio as described below.

1. Run the following command to install Istio using the demo profile

    $ istioctl install --set profile=demo -y

   You should see a similar output as below:

    - Istio core installed
    - Istiod installed
    - Egress gateways installed
    - Ingress gateways installed
    - Installation complete
    Making this installation the default for injection and validation.

   The above components install in the istio-system namespace. With the demo profile, Istio installs istiod, istio-egressgateway, and istio-ingressgateway components as below:

   • istiod: The Istio control plane component responsible for managing proxies and traffic routing
   • istio-ingressgateway: Allows you to define entry points for your services
   • istio-egressgateway: Allows you to define exit points for your services

2. Run the following command to list the Istio pods

    $ kubectl get pods --namespace istio-system

   Output:

    NAME                                    READY   STATUS    RESTARTS   AGE
    istio-egressgateway-77db8d5479-qkhtj    1/1     Running   0          3h35m
    istio-ingressgateway-5ccb67cdc7-phg8t   1/1     Running   0          3h35m
    istiod-64b55f66f-gxvfp                  1/1     Running   0          3h35m

   As displayed in the output, verify that all Istio components are ready and running.

Configuration

In this section, configure Istio to apply service mesh for the demo application deployed on your VKE cluster.

Enable the Istio Envoy Proxy

Istio injects Envoy proxies into the application pods to enforce constant communication with each other. As a result, the Istio control plane can apply traffic management, observability, and security enhancement through the Envoy proxies.

To allow Istio mark pods it should inject with the Envoy proxy, label the namespace that the pods belong to with the is-injection=enabled option. For example. run the following command to mark the default namespace with is-injection=enabled

$ kubectl label namespace default istio-injection=enabled

Output:

namespace/default labeled

The is-injection=enabled label marks all pods in the default namespace. Deploy a sample application to test the Envoy proxy functionality

Deploy a Sample Application

In this section, deploy a sample bookinfo application that has the following services:

• product page: Retrieves book information from the details and reviews services.
• reviews: Contains the book review. It has three versions: v1, v2, and v3.
• ratings: Stores the book ranking information
• details: Stores the book information

Within the Istio package directory you downloaded on installation, sample deployment scripts for the bookinfo app are available within the sample sub-directory

1. Switch to the Istio data directory

    $ cd istio-1.18.2


2. Deploy the bookinfo application to the default namespace.

    $ kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml

   Output:

    service/details created
    serviceaccount/bookinfo-details created
    deployment.apps/details-v1 created
    service/ratings created
    serviceaccount/bookinfo-ratings created
    deployment.apps/ratings-v1 created
    service/reviews created
      serviceaccount/bookinfo-reviews created
      deployment.apps/reviews-v1 created
      deployment.apps/reviews-v2 created
      deployment.apps/reviews-v3 created
      service/productpage created
      serviceaccount/bookinfo-productpage created
      deployment.apps/productpage-v1 created


3. After a few minutes, verify the status of the pods

    $ kubectl get pods

   Your output should look like the one below:

    NAME                              READY   STATUS    RESTARTS   AGE
    details-v1-7c7dbcb4b5-tvkml       2/2     Running   0          2m53s
    productpage-v1-664d44d68d-7pg6k   2/2     Running   0          2m47s
    ratings-v1-844796bf85-f9jqz       2/2     Running   0          2m51s
    reviews-v1-5cf854487-xwsdj        2/2     Running   0          2m50s
    reviews-v2-955b74755-7tfmj        2/2     Running   0          2m49s
    reviews-v3-797fc48bc9-sv8w2       2/2     Running   0          2m48s

   As displayed in the above output, each pod has two running containers, the application container, and the envoy proxy container

4. To view the containers inside a pod, for example, pod details-v1-7c7dbcb4b5-tvkml, run the following command:

    $ kubectl get pods details-v1-7c7dbcb4b5-9dxsr -o jsonpath='{.spec.containers[*].name}'

   Output:

    details istio-proxy

   In the above output:

   • details is the container name of the application container
   • istio-proxy is the Envoy proxy name injected by Istio into the pod

Expose the Application

Your sample application requires customers to retrieve book information using the productpage service. To enable access to the bookinfo application, you need to:

• Create an Istio gateway that acts as a load balancer for your application
• Forward requests from the gateway to the productpage service

Create an Istio Gateway

1. Within the Istio data directory, use a text editor such as Nano to create a new file named istio-gateway.yaml

    $ nano istio-gateway.yaml


2. Add the following contents to the file

    apiVersion: networking.istio.io/v1alpha3
    kind: Gateway
    metadata:
      name: bookinfo-gateway
    spec:
      selector:
        istio: ingressgateway # use istio default controller
      servers:
      - port:
          number: 80
          name: HTTP
          protocol: HTTP
        hosts:
        - "*"

   Save and close the file.

   In the above configuration, you set the Istio gateway named bookinfo-gateway and chose the selector type as ingressgateway. This means incoming traffic forwards to the Istio service mesh. The gateway on port 80 accepts HTTP traffic and sets the gateway to accept any hostname.

3. Apply the configuration to create the Istio gateway

    $ kubectl apply -f istio-gateway.yaml

   Output:

    gateway.networking.istio.io/bookinfo-gateway created


4. View the EXTERNAL-IP of the Istio gateway

    $ kubectl get svc istio-ingressgateway -n istio-system

   Your output should appear like the one below:

    NAME                   TYPE           CLUSTER-IP      EXTERNAL-IP       PORT(S)                                                                      AGE
    istio-ingressgateway   LoadBalancer   10.111.89.113   192.0.2.100       15021:32290/TCP,80:30270/TCP,443:31066/TCP,31400:31694/TCP,15443:30141/TCP   5h41m


5. Using curl, make an HTTP request to the gateway

    $ curl "http://192.0.2.100"

   The request returns an empty result because you need to implement a mechanism to forward the request to the target application.

Forward External Requests to the Application Service

1. Create a new file named product-page-virtual-service.yml

    $ nano product-page-virtual-service.yaml


2. Add the following configurations to the file

    apiVersion: networking.istio.io/v1alpha3
    kind: VirtualService
    metadata:
      name: productpage
    spec:
      hosts:
      - "*"
      gateways:
      - bookinfo-gateway
      http:
      - match:
        - uri:
            exact: /productpage
        route:
        - destination:
            host: productpage
            port:
              number: 9080

   Save and close the file.

   The above configuration defines an Istio VirtualService to forward requests with the URL $GATEWAY-URL/productpage to the productpage service on port 9080.

3. Run the following command to create the VirtualService for the above configuration

    $ kubectl apply -f product-page-virtual-service.yaml

   Your output should appear like the one below:

    virtualservice.networking.istio.io/productpage created


4. Make an HTTP request to the Istio gateway again

    $ curl "http://192.0.2.100/productpage"

   You should view the content of your product page service as below:

    <!DOCTYPE html>
    <html>
      <head>
        <title>Simple Bookstore App</title>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    ...

Set Up the Istio Service Mesh

Enable observability, traffic management, and security enhancement for your application using Istio as described in the following sections.

Observability

To enable observability in the application, install Kiali to visualize how services communicate with each other. Additionally, implement addon services like Prometheus or Jaeger to collect service metrics as described in the steps below.

1. The Istio data directory contains all necessary addons, install them to your cluster using the following command

    $ kubectl apply -f samples/addons

   Wait for a few minutes for the installation of all required addons to complete. When successful, your output should look like the one below:

    service/kiali created
    deployment.apps/kiali created
    serviceaccount/loki created
    configmap/loki created
    configmap/loki-runtime created
    service/loki-memberlist created
    service/loki-headless created
    service/loki created
    statefulset.apps/loki created
    serviceaccount/prometheus created
    configmap/prometheus created
    clusterrole.rbac.authorization.k8s.io/prometheus created
    clusterrolebinding.rbac.authorization.k8s.io/prometheus created
    service/prometheus created
    deployment.apps/prometheus created


2. Start the Kiali dashboard in the background to view how services in the bookinfo app communicate

    $ istioctl dashboard kiali &

   The above command forwards your Kiali cluster port to your localhost machine IP address. When successful, your output should appear like the one below:

    http://localhost:20001/kiali

   Later, to stop the Kiali dashboard background process, view the job ID

    $ jobs

   Stop the background process by job ID. For example, job id 1.

    $ kill %1


3. By default, the istioctl dashboard kiali port forwarding command only accepts connections from the localhost hostname address 127.0.0.1. To access the dashboard using your public management Server IP, set up a new configuration file to enable Nginx as a reverse proxy using the command below

    $ sudo nano /etc/nginx/sites-enabled/kiali.conf


4. Add the following configurations to the file

    server {
        listen 8080;
        server_name _;

        location / {
            proxy_pass http://localhost:20001;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;
        }
    }

   Save and close the file

   The above configuration securely forwards all requests to the Nginx listening port 8080 to the Kiali dashboard localhost port 20001 for further processing.

5. Enable the listening port 8080 through the firewall

    $ sudo ufw allow 8080/tcp

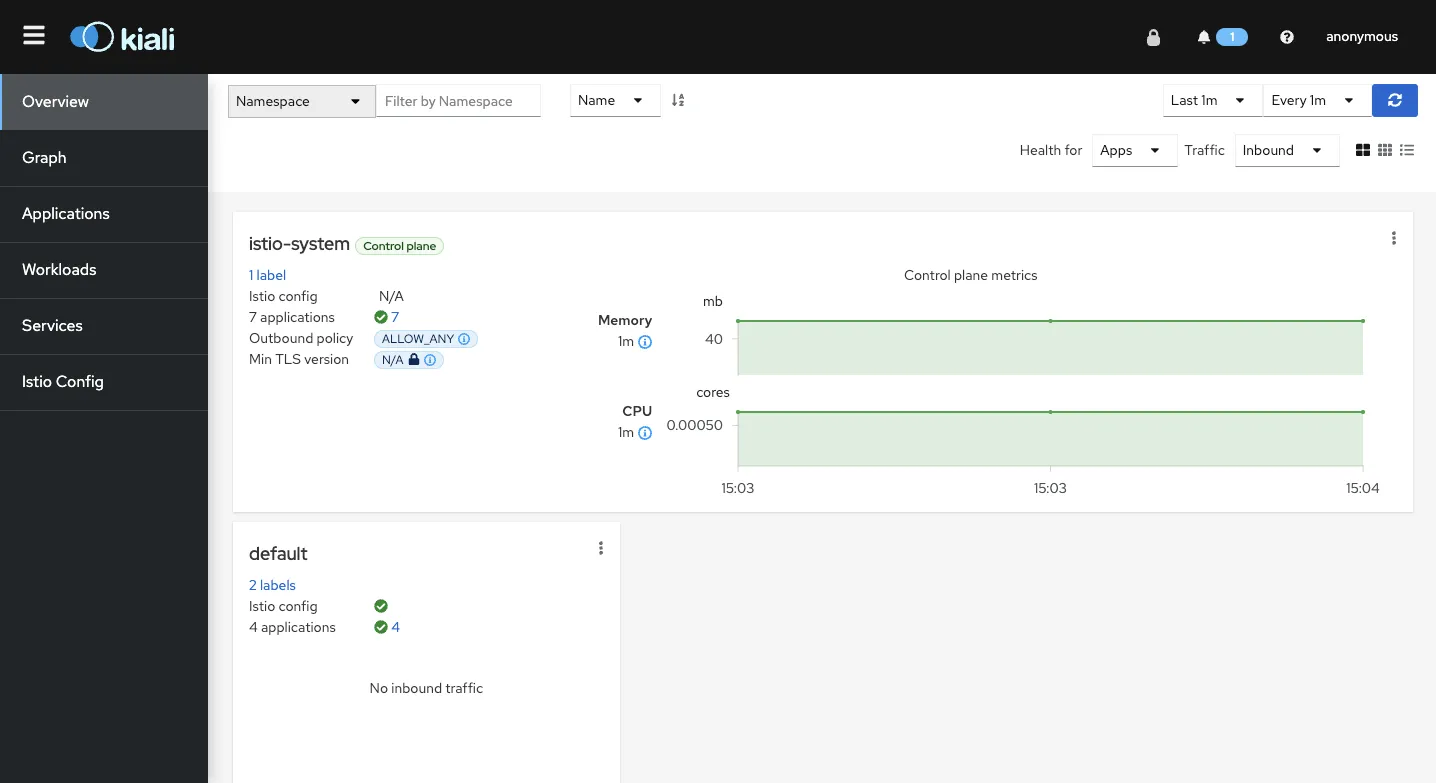

6. Using a web browser such as Chrome, access the Kiali dashboard

    http://SERVER-IP:8080/kiali

   The main Kiali dashboard interface should display in your browser window.



7. In your terminal session, send sample requests to the bookinfo application to view how the services interact with each other. Replace 192.0.2.100 with your actual cluster external address

    $ for i in $(seq 1 1000); do curl -s -o /dev/null "http://192.0.2.100/productpage"; done

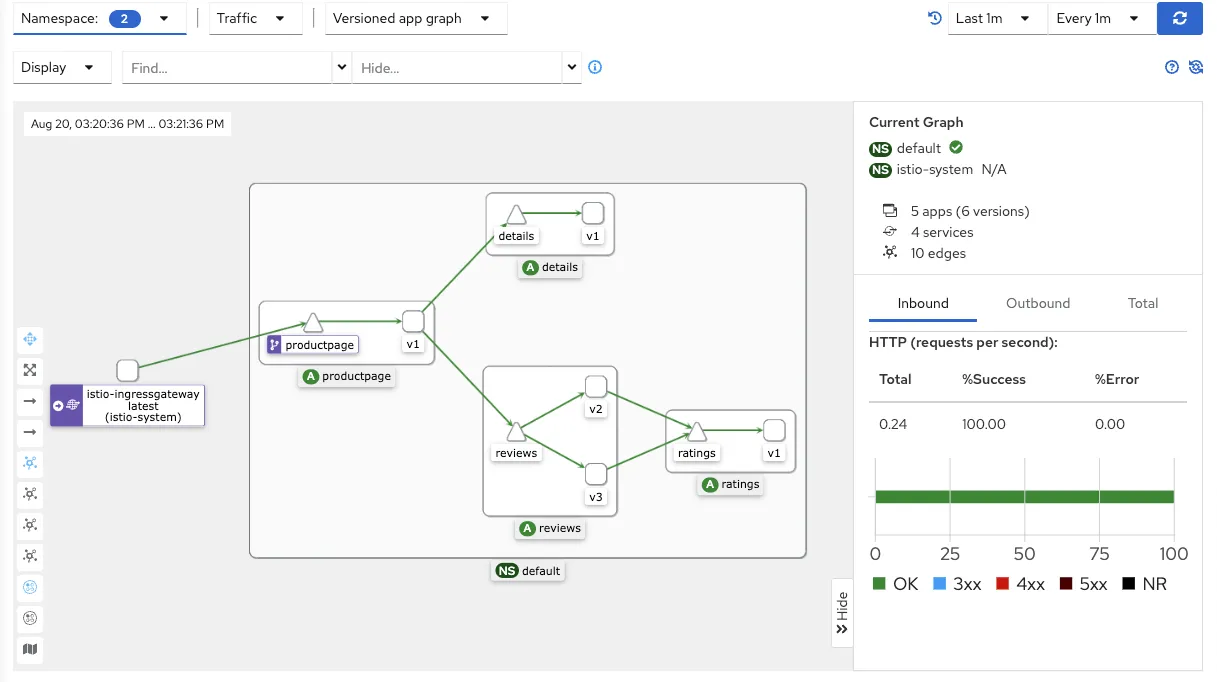

8. On the main navigation menu, click Graph

9. On the top bar, click the Select Namespaces button, and check Select all to read all cluster namespaces

10. Verify that the graph displays how services send requests to each other



    As displayed in the graph, requests distribute evenly for the reviewers service version v1, v2, v3, this is the built-in support for traffic management that Istio offers. By default, Istio applies the least request load balancing algorithm to distribute requests to the pods.

    In your terminal session, press Ctrl + C to stop sending sample requests

Traffic Management

To apply customized traffic management for your services, create a new virtual service and destination rule to distribute the traffic to different versions of the reviewer service as described below.

1. In your terminal session, create a new file named custom-traffic-management.yaml

    $ nano custom-traffic-management.yaml


2. Add the following contents to the file

        apiVersion: networking.istio.io/v1alpha3
        kind: VirtualService
        metadata:
          name: reviews
        spec:
          hosts:
            - reviews
          http:
            - route:
              - destination:
                  host: reviews
                  subset: v1
                weight: 10
              - destination:
                  host: reviews
                  subset: v2
                weight: 70
              - destination:
                  host: reviews
                  subset: v3
                weight: 20
        ---
        kind: DestinationRule
        apiVersion: networking.istio.io/v1alpha3
        metadata:
          name: reviews-destination
        spec:
          host: reviews
          trafficPolicy: ~
          subsets:
            - labels:
                version: v1
              name: v1
            - labels:
                version: v2
              name: v2
            - labels:
                version: v3
              name: v3

   Save and close the file.

   In the above configuration, the DestinationRule resource definition instructs Istio to label the reviews service versions into different subsets as v1, v2, and v3. The VirtualService resource definition instructs Istio to distribute different traffic weights to different versions of the reviews service by their subsets label as below:

   • 10 percent of the traffic to the reviews service version 1
   • 70 percent of the traffic to the reviews service version 2
   • 20 percent of the traffic to the reviews service version 3

3. Apply the resource to your cluster

    $ kubectl apply -f custom-traffic-management.yml


4. Again, send some requests to the bookinfo application

    $ for i in $(seq 1 1000); do curl -s -o /dev/null "http://192.0.2.100/productpage"; done

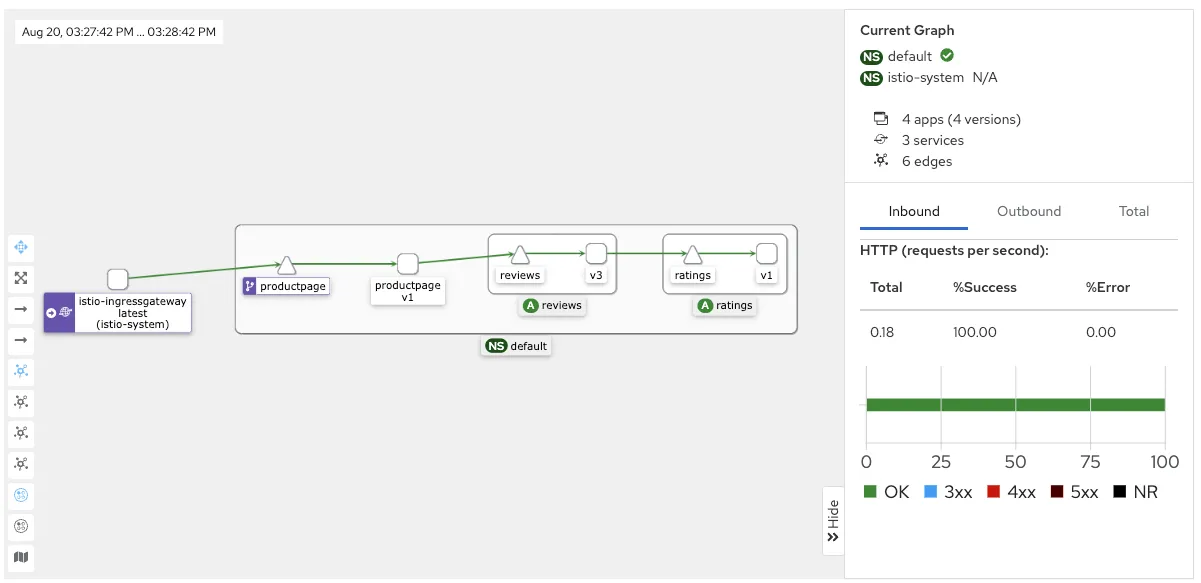

5. In your browser session, access the Kiali dashboard, find, and click the refresh button in the top right corner to view the traffic graph again.



   As displayed in the updated graph, the ratio of requests for each reviews service version is different. The reviews service version 2 should have the most significant number of traffic.

Security Enhancement

To enable services inside the Kubernetes cluster to securely communicate with each other and prevent MITM (Man in the Middle) type of attacks, enable TLS authentication on external traffic requests. However, using TLS for every service in your application is time consuming depending on the number of running services. With this difficulty, Istio supports TLS using mutual TLS that allows both the client and server to verify the identities of each other.

Below are the supported Istio mutual TLS authentication modes:

• Permissive mode: It's the default supported mode in which the Envoy proxies accept mutual TLS and non-mutual TLS traffic. You can send HTTP requests to the application pods outside the Kubernetes cluster.
• Strict mode: The Envoy proxies only accept mutual TLS traffic. You cannot send HTTP requests to the application pods outside the Kubernetes cluster. Instead, you must send HTTPS requests to the pods.

To better note the difference between the permissive and strict mode, send an HTTP request to the productpage service without using the gateway endpoint.

1. Run the following command to list the services in your Kubernetes cluster

    $ kubectl get svc

   Your output should appear like the one below:

    NAME              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)             AGE
    details           ClusterIP   10.102.170.227   <none>        9080/TCP            20h
    kubernetes        ClusterIP   10.96.0.1        <none>        443/TCP             22h
    loki              ClusterIP   10.99.14.65      <none>        3100/TCP,9095/TCP   20h
    loki-memberlist   ClusterIP   None             <none>        7946/TCP            20h
    productpage       ClusterIP   10.106.169.43    <none>        9080/TCP            20h
    ratings           ClusterIP   10.108.144.95    <none>        9080/TCP            20h
    reviews           ClusterIP   10.101.40.10     <none>        9080/TCP            20h

   As displayed in the output, the productpage service uses the ClusterIP type with no EXTERNAL-IP value for you to access it.

2. To set the service EXTERNAL-IP value, change the ClusterIP type to LoadBalancer using the following command

    $ kubectl edit svc productpage

   The above command opens the service YAML configuration in the vim text editor. Scroll the Selector section, find the type: ClusterIP entry, press I on your keyboard to edit the file, and change the value type: LoadBalancer

   Press Esc, enter :, and add W + Q to save the file, and close the editor.

3. Wait for a few minutes for Kubernetes to apply changes, and check the cluster services again

    $ kubectl get svc

   You should see a similar output as below:

    NAME              TYPE           CLUSTER-IP       EXTERNAL-IP       PORT(S)             AGE
    details           ClusterIP      10.102.170.227   <none>            9080/TCP            20h
    kubernetes        ClusterIP      10.96.0.1        <none>            443/TCP             22h
    loki              ClusterIP      10.99.14.65      <none>            3100/TCP,9095/TCP   20h
    loki-memberlist   ClusterIP      None             <none>            7946/TCP            20h
    productpage       LoadBalancer   10.106.169.43    192.0.2.100       9080:30933/TCP      20h
    ratings           ClusterIP      10.108.144.95    <none>            9080/TCP            20h
    reviews           ClusterIP      10.101.40.10     <none>            9080/TCP            20h

   Verify that the productpage service now has your loadbalancer's external IP value.

4. Run the following command to make a HTTP request to the productpage service using its EXTERNAL-IP address

    $ curl http://external-ip:9080/productpage --> able to capture the content

   The productpage service response should look like the one below:

    <!DOCTYPE html>
    <html>
    <head>
      <title>Simple Bookstore App</title>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">

    ...
    <div class="navbar navbar-inverse navbar-fixed-top">
    <div class="container">
      <div class="navbar-header pull-left">
        <a class="navbar-brand" href="#">Microservices Fabric BookInfo Demo</a>
      </div>
    </div>
    </div>
    ...

   Because Istio applies the permissive mutual TLS mode by default, a client can send HTTP requests to the service.

5. To change the mutual TLS mode to strict mode, create a new file named strict-mode-tls.yaml

    $ nano strict-mode-tls.yaml


6. Add the following contents to the file

    apiVersion: "security.istio.io/v1beta1"
    kind: "PeerAuthentication"
    metadata:
      name: "default"
      namespace: "istio-system"
    spec:
      mtls:
        mode: STRICT

   Save and close the file.

   The above configuration instructs Istio to apply the strict mode to the PeerAuthentication resource within the istio-system namespace.

7. Apply the change to your cluster

    $ kubectl apply -f strict-mode-tls.yaml


8. Wait for a few seconds for Istio to apply the change. Then, try to make an HTTP request to the productpage again

    $ curl https://external-ip:9080/productpage

   This time, you should receive an error message from the productpage service as below:

    curl: (52) Empty reply from server

   The above error displays because Istio now applies a strict mode for the mutual TLS authentication. If the client does not send an HTTPS request to the service, Istio does not allow the client to interact with the service.

Conclusion

In this article, you used Istio to apply observability, traffic management, and security enhancement for your application. To further implement Istio in your cluster, visit How to Use Istio for Ingress Gateway without TLS Termination on VKE to send encrypted SSL requests directly to the NGINX server.

More Information

For more information about Istio, visit the following resources:

• Istio Traffic Management
• Istio Observability
• Istio Security
