How to Install HAProxy on Ubuntu 20.04

HAProxyApacheUbuntu
FN
Updated on July 25, 2024
How to Install HAProxy on Ubuntu 20.04 header image

Introduction

HAProxy stands for High Availability Proxy. It's an open-source load balancer that you can use to distribute HTTP traffic to multiple backend applications, websites, or databases to create a highly available system. It is the fastest and most superior load balancer that offers massive scalability in any environment, making it the number one choice for high-profile websites like Twitter, GitHub, and Amazon Web Service.

In this age of an internet-connected world, your application might be serving millions of users around the globe(For instance, a social media application). In such a mission-critical system, any downtime may lead to financial loss and an unpleasant customer experience. To ensure that your application works even when some of its components fail, you should create multiple instances of your computing infrastructure and put a customer-facing load balancer to route traffic to the clustered environment.

HAProxy allows your system to tolerate interruptions with no downtime to users. To use the technology, you should design your system with redundancy in mind. That is, you should run multiple instances of computer components that are very likely to fail or require periodic maintenance. Also, HAProxy failover mechanism uses different performance metrics to monitor the availability and health of the redundant servers working as a group to switch traffic only to active components. Therefore, HAProxy meets all the basic elements of high availability. That is redundancy, failover, and monitoring.

In this guide, you'll install and configure the HAProxy load balancer on Ubuntu 20.04 server to distribute web traffic to two different servers.

Prerequisites

To follow along with this HAProxy tutorial, you require the following:

This guide uses the following public/private IP addresses and hostnames for the servers. Make sure to change the values accordingly.

Hostname: main-server

  • Public IP: 192.0.2.10
  • Private IP: 10.0.0.10

Hostname: server-1

  • Public IP: 192.0.2.11
  • Private IP: 10.0.0.11

Hostname: server-2

  • Public IP: 192.0.2.12
  • Private IP: 10.0.0.12

Ensure Apache webserver is only installed on server-1 and server-2. Don't install Apache on the main-server because there will be a port conflict. This is because Apache listens on the same port (80) as HAProxy.

1. Install the HAProxy Server on the Main Server

In this step, you'll pull the HAProxy package from the official Ubuntu software repository. SSH to your server and update the package information index by running the command below.

$ sudo apt update

Next, issue the following command to install the haproxy package.

$ sudo apt install -y haproxy

Check the status of the HaProxy server.

$ sudo systemctl status haproxy

Ensure the HaProxy service is running by confirming the following output.

...
Active: active (running)
...

To check your HaProxy version, run the following command.

$ haproxy -v

Ensure you get the version number displayed as shown below.

HA-Proxy version 2.0.13-2ubuntu0.2 2021/08/16 - https://haproxy.org/

After installing the HAProxy package, you'll configure it next to distribute traffic to the rest of your servers.

2. Configure the HAProxy Server

HAProxy maintains a configuration file at the following location.

/etc/haproxy/haproxy.cfg

First, back up the file using the Linux cp command to ensure you can revert to the default settings if you make any mistakes.

$ sudo cp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.bk

Next, use the nano text editor to open the file for editing purposes.

$ sudo nano /etc/haproxy/haproxy.cfg

Once opened, the HAProxy configuration file is divided into different sections, which play a vital role, as explained below.

  • global: At the top, HAProxy contains system-wide settings that mainly deal with security and performance tuning. For now, don't change these values. Here are some of the global settings.

      global
          log /dev/log    local0
          log /dev/log    local1 notice
          chroot /var/lib/haproxy
          stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
          stats timeout 30s
          user haproxy
          group haproxy
          daemon

          # Default SSL material locations
          ca-base /etc/ssl/certs
          crt-base /etc/ssl/private
          ...

  • defaults: The defaults holds some settings that you would probably use without further customizations, including error reporting and timeout configurations. The settings may be similar to the following output. Don't touch these settings; you'll run HAProxy with the default values for now.

      defaults
          log     global
          mode    http
          ...
          timeout server  50000
          errorfile 400 /etc/haproxy/errors/400.http
          errorfile 403 /etc/haproxy/errors/403.http
          ...
          errorfile 408 /etc/haproxy/errors/408.http

  • frontend and backend: In addition to the global and defaults settings HAProxy allows you to define some frontend and backend settings. In this guide, you're using HAProxy as a reverse proxy in front of two backend servers. Therefore, you should define both the frontend and backend settings as shown below.

    In the frontend, instruct HaProxy to bind to port 80(bind *:80) and forward traffic to a backend section which you've named web_servers. In the backend section, set HAProxy to use the roundrobin algorithm to select every backend server cyclically without any preference. You may also use the leastconn algorithm to prioritize the server with the least active connections. Next, define the IP address and ports of the servers where you want the traffic to be distributed. Remember to replace the IP addresses 10.0.0.11 and 10.0.0.12 with the appropriate private IP addresses of your nominated backend servers. The check parameter validates the health of the server before routing any clients to it.

      frontend example_front_end
      bind *:80
      option forwardfor
      default_backend web_servers

  backend web_servers
      balance roundrobin
      server server-1 10.0.0.11:8080 check
      server server-2 10.0.0.12:8080 check

  • listen: Optionally, define some statistical settings on a new listen section as shown below. The settings will help you log in to the HAProxy server on a web browser and view the performance of your servers. Replace ha_proxy_admin with an appropriate username. Change EXAMPLE_PASSWORD with a strong value.

      listen stats
      bind :32600
      stats enable
      stats uri /
      stats hide-version
      stats auth ha_proxy_admin:EXAMPLE_PASSWORD

Save and close the /etc/haproxy/haproxy.cfg when you're through with editing. In the above settings, you've instructed HAProxy to listen on port 80. In case you've Apache web server installed on the main-server, it will still listen on the same port(80), and there will be a conflict, and HaProxy won't be able to load. Therefore, stop the Apache webserver using the following command in case you've it.

$ sudo systemctl stop apache2

You can now gracefully restart HAProxy to load the new configuration settings using the following command.

$ sudo systemctl restart haproxy

The HAProxy server is now ready to listen for HTTP traffic and route it to the appropriate backend servers. In the next step, you'll configure the Apache webserver on the backend servers.

3. Configure Apache Listening Port On the Backend Servers

By default, the Apache web server listens for HTTP traffic on port 80. In the previous section, you've configured your HAProxy server to direct traffic to port 8080 on the backend servers. In this step, you'll configure the same on these two servers.

Open the /etc/apache2/ports.conf file on both server-1 and server-2 on different terminals using nano text editor.

$ sudo nano /etc/apache2/ports.conf

Locate the following Listen directive.

Listen 80

Then, change the port from 80 to 8080 as shown below on both backend servers.

Listen 8080

Still, on both the backend servers, open the virtual host file below.

$ sudo nano /etc/apache2/sites-available/000-default.conf

Locate the line below.

<VirtualHost *:80>
...

Change the value of *:80 to *:8080

<VirtualHost *:8080>
...

Restart Apache on both servers to load the new changes.

$ sudo systemctl restart apache2

Apache webserver should now listen for incoming traffic on port 8080 on both the backend servers as soon as it's forwarded by the HAProxy server. In the next step, you'll create some web content on the backend servers.

4. Create Web Content on the Backend Servers

Clients will send HTTP requests to the main server where you've installed HAProxy. Then, HaProxy will route the traffic in a balanced way to the backend servers. Therefore, you should create some web content on the public root directories of server-1 and server-2.

First, delete the default /var/www/html/index.html files on both the backend servers.

  • server-1:

      $ sudo rm  /var/www/html/index.html

  • server-2:

      $ sudo rm  /var/www/html/index.html

Next, open a new HTML file on server-1.

$ sudo nano  /var/www/html/index.html

Then, enter the content below into the /var/www/html/index.html on server-1.

<html>
  <head>
    <title>Backend Server 1</title>
  </head>
  <body>
    <h1>Server 1 is working.</h1>
  </body>
</html>

Save and close the file. Next, create a new /var/www/html/index.html on server-2.

$ sudo nano  /var/www/html/index.html

Then enter the information below into the /var/www/html/index.html file on server-2.

<html>
  <head>
    <title>Backend Server 2</title>
  </head>
  <body>
    <h1>Server 2 is working.</h1>
  </body>
</html>

Save and close the file. You've now created different web content in the backend servers. In the next step, you'll test whether HAProxy can route and distribute traffic to your backend servers.

5. Test the HAProxy Load Balancing Algorithm

In your web browser, enter the public IP address or domain name of the main-server where you installed HAProxy.

You should receive the response below when you visit the page for the first time showing you have connected to backend server-1.

Server 1

Refresh the page, and this time around, you should view the content of backend server-2.

Server 2

To view general statistical information about your frontend and backend servers, visit the HaProxy's server public IP address on port 32600.

Enter the login details that you defined on the stats sections in the HAProxy configuration file. For instance username:ha_proxy_admin, password:EXAMPLE_PASSWORD to log in.

...
listen stats
    ...
    stats auth ha_proxy_admin:EXAMPLE_PASSWORD
...

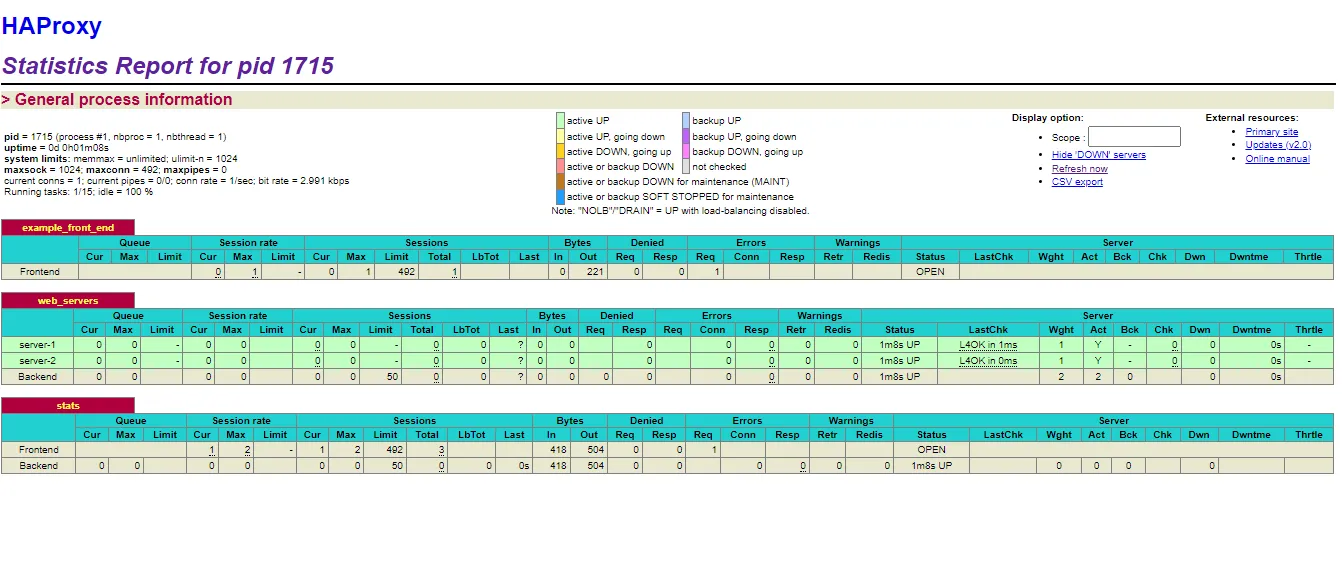

You should see a dashboard with a lot of HAProxy information.

HaProxy Dashboard

Your HAProxy server is working as expected, and indeed, you're redistributing the load from the main server to the backend servers as you had expected. In this guide, you've created two different web pages with varying content to prove the load-distribution concept. In a production environment, the contents on the redundant servers should be similar, or if you're fetching data from a database, the backend servers should display the same data. For instance, the backends should connect to a MySQL group replicated database. This helps your app to tolerate downtimes in case some of the backend servers fail.

Conclusion

In this tutorial, you've installed HAProxy on Ubuntu 20.04 and successfully distributed HTTP traffic to two different backend servers. You can extend the logic in this guide and even set up more redundant servers depending on your application load. HAProxy allows you to distribute traffic on your clustered environment to avoid overwhelming a single server when thousands of clients are connected to your application.
