How to Install OpenLiteSpeed Webserver on Ubuntu 24.04
Introduction
OpenLiteSpeed is a free, open-source high-performance webserver application that supports multiple connection protocols such as HTTP/2, and HTTP/3 with native support for PHP to enable the secure delivery of dynamic web applications. It includes a user-friendly graphical web administration console that allows you to manage and create multiple virtual hosts to run on your server.
This article explains how to install the OpenLiteSpeed webserver on Ubuntu 24.04 and configure the web administration console to securely deliver web applications on your server.
Prerequisites
Before you begin:
- Deploy an Ubuntu 24.04 instance on Vultr.
- Create a new domain A record pointing to the server IP address. For example,
app.example.com. - Access the server using SSH as a non-root user with sudo privileges.
- Update the server.
Install OpenLiteSpeed
OpenLiteSpeed is not available in the default APT repositories on Ubuntu 24.04, but you can install it using the latest repository information script. Follow the steps below to download the OpenLiteSpeed repository setup script and execute it to install the webserver using the APT package manager.
Download the latest OpenLiteSpeed repository setup script.
CONSOLERun the script to add the OpenLiteSpeed repository information to your APT sources.
CONSOLEOutput:
Install OpenLiteSpeed.
CONSOLEView the installed OpenLiteSpeed version on your server.
CONSOLEYour output should be similar to the one below.
Manage the OpenLiteSpeed System Service
OpenLiteSpeed uses the lshttpd.service system service with an lsws alias to control the webserver processes using systemd. Follow the steps below to enable the OpenLiteSpeed service to automatically start at boot time and start the webserver.
Enable the OpenLiteSpeed system service to automatically start at boot time.
CONSOLEStart the OpenLiteSpeed service.
CONSOLEView the OpenLiteSpeed service status and verify that it's running.
CONSOLEOutput:
Stop the OpenLiteSpeed service.
CONSOLERestart the service.
CONSOLE
Access the OpenLiteSpeed Web Administration Control Panel
The OpenLiteSpeed web administration console is active and runs on the default host port 7080 and the default administrator password is available in the /usr/local/lsws/admin/password file. Follow the steps below to enable access to the console port 7080, change the default administrator details, and configure OpenLiteSpeed to server web applications on the HTTP port 80.
Run the OpenLiteSpeed administrator script to create a new custom username and password.
CONSOLE- Enter a new administrator username in the
User nameprompt and press Enter to save the user.
- Enter a strong password to use with your new administrative user.
- Enter the user password again and press Enter to save your new administrative user details.
- Enter a new administrator username in the
Allow connections to the OpenLiteSpeed web administration port
7080through the default UFW firewall utility.CONSOLEReload the UFW rules to apply changes.
CONSOLEAccess the OpenLiteSpeed port
7080using your server IP in a web browser such as Chrome.Accept the insecure SSL certificate warning and enter the administrative user details you created earlier.
- USERNAME:
<username you set earlier> - PASSWORD:
<password you set earlier>
- USERNAME:

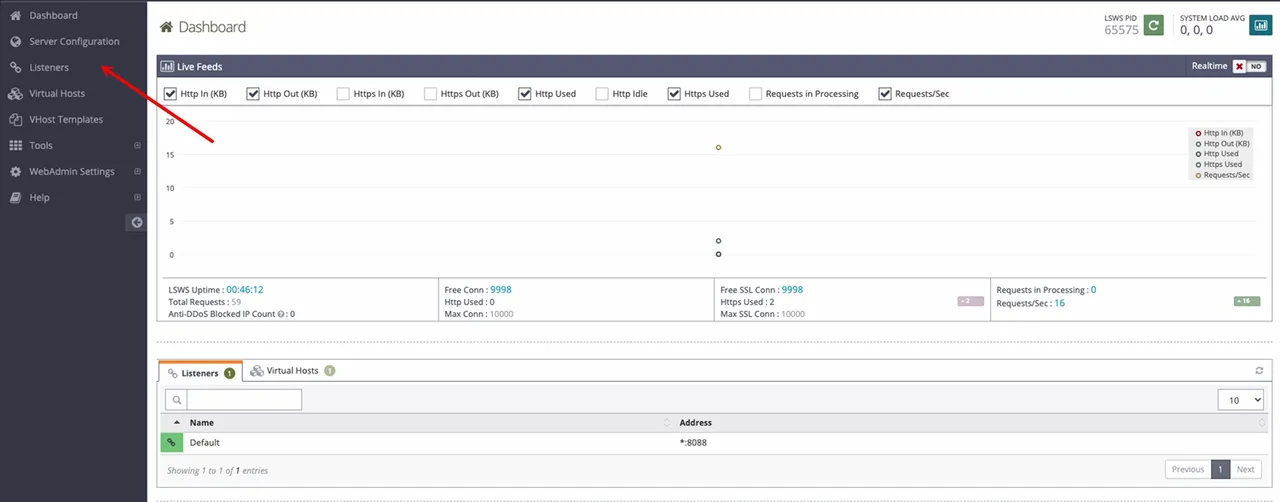

Click Listeners on the main navigation bar to modify the default listening port on your webserver.
Click the view icon in the Actions section of the Default listener profile.
Click Edit in the top right of the Address Settings section to modify the default listener details.
Edit the Port field and replace the default value
8088with80to enable all default virtual hosts to run on the HTTP port80.Click the Save icon in the top right Address Settings section to save the new default listener settings.
Verify that a

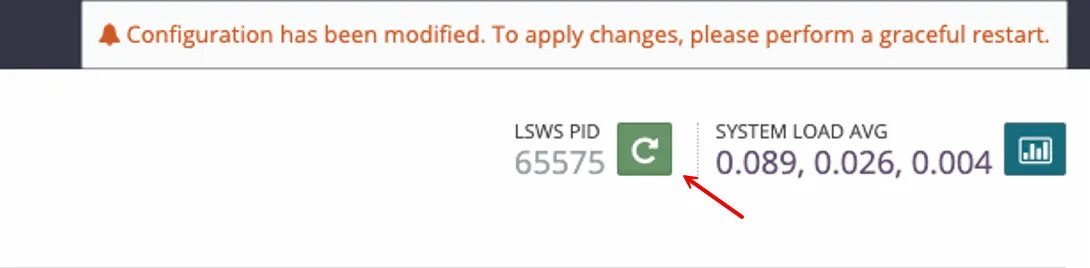

Configurations modifiedprompt displays. Then, find the LSWS PID option in the top right corner and click the Graceful Restart icon to apply your configuration changes.Click Go when prompted to restart the OpenLiteSpeed webserver to apply changes.
Create a new OpenLiteSpeed Virtual Host
OpenLiteSpeed allows you to create virtual hosts using the web administration console with custom web root directories on your server. Follow the steps below to create a new OpenLiteSpeed virtual host that delivers web application files using the example domain app.example.com and a custom web root directory on your server.
Create a new web root directory to use with your virtual host. For example,
/usr/local/lsws/app.example.com.CONSOLECreate the
html,logs, andconfdirectories required by the OpenLiteSpeed webserver.CONSOLEThe above command creates the following sub-directories in your web root directory:
html: Contains the web application files served through OpenLiteSpeed using the virtual host domain.logs: Stores the virtual host access and error logs.conf: Stores site-specific configurations for use with the OpenLiteSpeed webserver.
Grant the OpenLiteSpeed console user and group
lsadmfull privileges to the web root directory.CONSOLEAccess your OpenLiteSpeed web administration console.
Click Virtual Hosts on the main navigation menu to set up a new virtual host.
Click the +

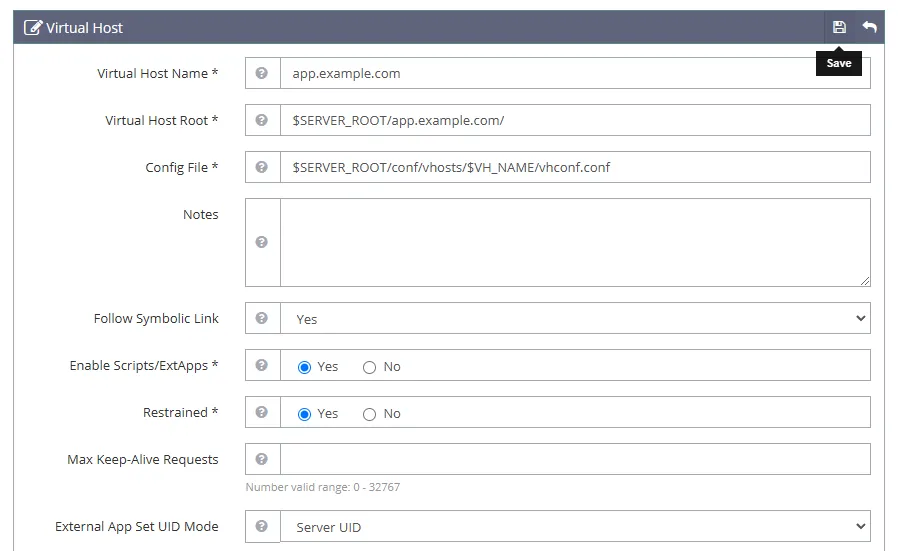

Addoption in the top right corner of the Virtual Host List section.Enter the following virtual host configuration details in the respective fields. Replace
app.example.comwith your actual domain.- Virtual Host Name:
app.example.com - Virtual Host Root:
$SERVER_ROOT/app.example.com/ - Config File:
$SERVER_ROOT/conf/vhosts/$VH_NAME/vhconf.conf - Follow Symbolic Link:
Yes - Enable Scripts/ExtApps:
Yes - Restrained:
Yes - External App Set UID Mode:
Server UID
- Virtual Host Name:
Keep the other virtual host values unchanged and click Save in the top right corner of the Virtual Host section to save changes.

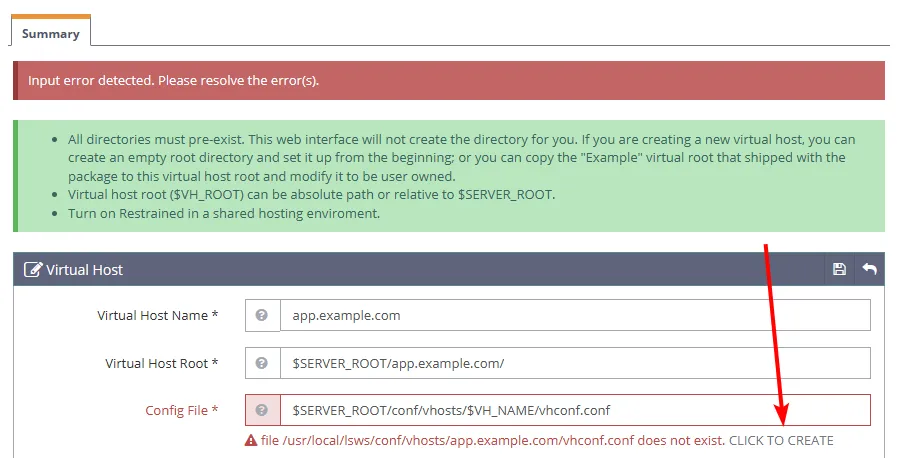

Find and click the CLICK TO CREATE option when you receive a
Please resolve the error(s)prompt to create a newvhconf.confvirtual host configuration in your web root directory.Click Save to create the new virtual host configuration.
Verify that your new virtual host is available in the Virtual Hosts summary. Then, click View within the Actions section to modify the new virtual host information.

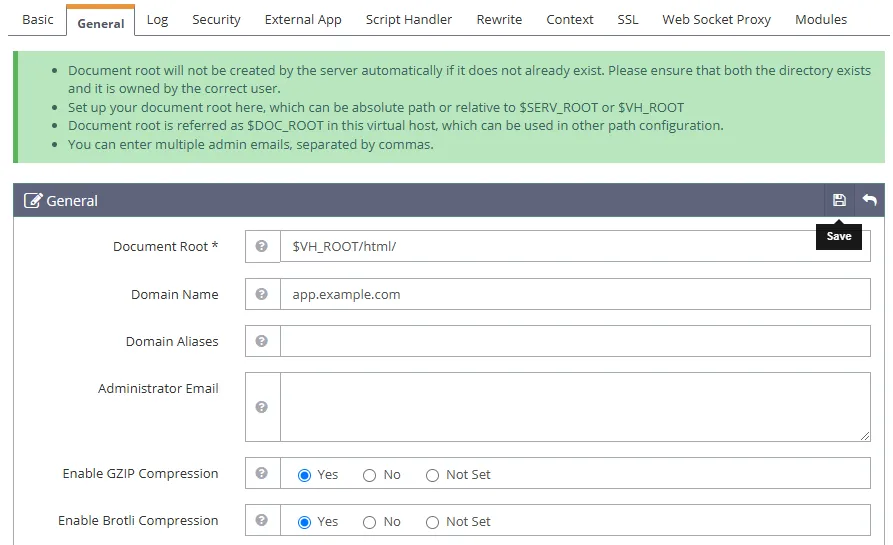

Navigate to the General tab and click Edit to modify the virtual host with the following information.
- Document Root:
$VH_ROOT/html/ - Domain Name:
app.example.com - Enable GZIP Compression:
Yes - Enable Brotli Compression:
Yes
- Document Root:
Click Save to apply the new virtual host configuration.

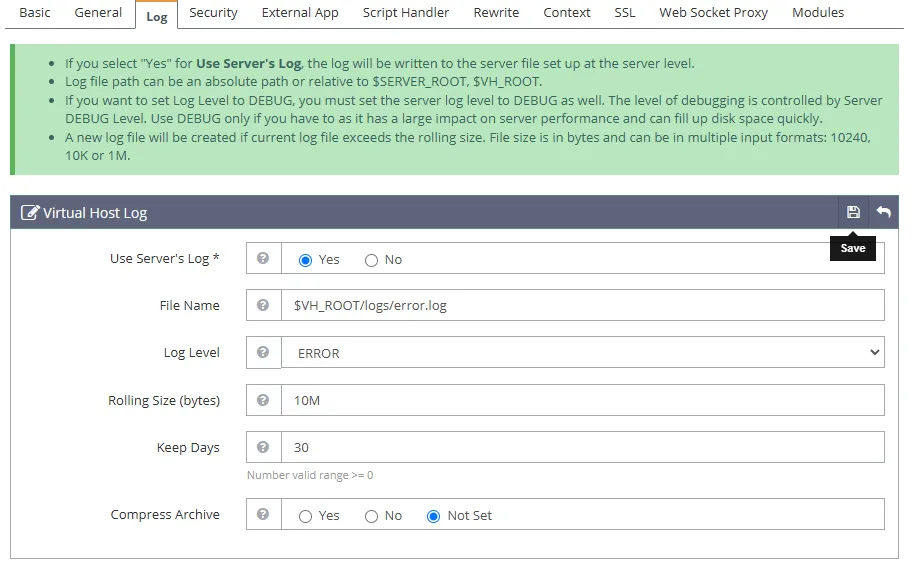

Navigate to the Log tab and click Edit within the Virtual Host Log section. Then, enter the following values in the respective fields to set up the error log details.
- Use Server’s Log:
Yes - File Name:
$VH_ROOT/logs/error.log - Log Level:
ERROR - Rolling Size (bytes):
10M - Keep Days:
30
- Use Server’s Log:
Click Save to apply the new virtual host error log details.

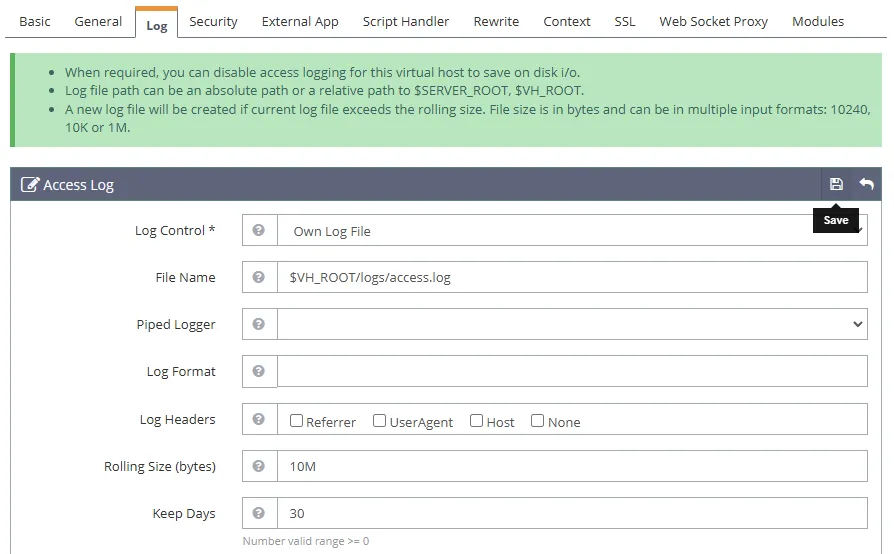

Click Add within the Access Log section to set up the virtual host access log details. Then, enter the following values in the respective fields.
- Log Control:
Own Log File - File Name:
$VH_ROOT/logs/access.log - Rolling Size (bytes):
10M - Keep Days:
30
- Log Control:
Click Save to apply the new virtual host access log details.
Navigate to the Rewrite tab and click edit within the Rewrite Control section to set up the virtual host rewrite configurations.
Enable Rewrite:
YesAuto Load from
.htaccess:Yes
Click Save to apply your virtual host rewrite configurations.
Navigate to Listeners on the main navigation bar.

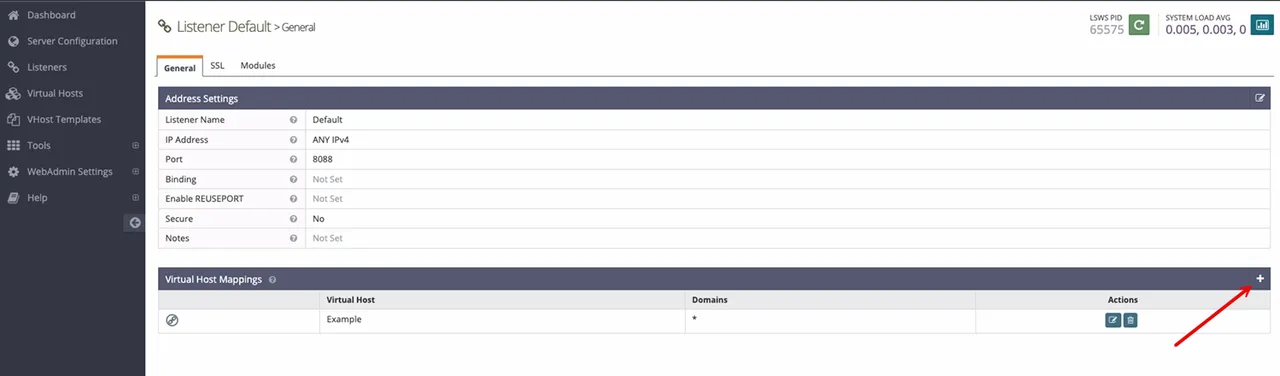

Edit the Default Listener and click Add within the Virtual Host Mappings section to set up your virtual host listening details.
Click the Virtual Host drop-down and select your virtual host profile.
Enter your domain
app.example.comin the Domains field to bind with the virtual host and serve web application files.Click Save to apply the new virtual host mapping details. Then, click the Graceful Restart next to LSWS PID in the top right console section to restart the OpenLiteSpeed webserver.
Click Go when prompted to restart LiteSpeed and apply your webserver configurations.
Access your server's SSH session.
CONSOLECreate a new HTML application file
index.htmlin your web roothtmldirectory.CONSOLEAdd the following contents to the file.
HTMLSave and close the file.
The above HTML application displays a
Greetings from Vultrmessage when accessed in your web browser.Allow connections to the default HTTP port
80through the firewall to test your virtual host configurations.CONSOLEAccess your virtual host domain in a new web browser window and verify that OpenLiteSpeed delivers your web application files.
Secure the OpenLiteSpeed Webserver
OpenLiteSpeed serves all virtual hosts on the HTTP port 80 which supports unencrypted network connections between a client and your webserver. HTTPS enables encrypted network connections on port 443 using SSL certificates to secure the connection between a web browser and the webserver. Follow the steps below to generate trusted Let's Encrypt SSL certificates, and secure the OpenLiteSpeed webserver.
Install the Certbot Let's Encrypt client tool using Snap.
CONSOLEGenerate a new SSL Let's Encrypt SSL certificate using an HTTP-01 challenge and your virtual host web root directory. Replace
app.example.comandadmin@example.comwith your actual details.CONSOLEThe above command generates a new Let's Encrypt SSL certificate using your virtual host domain
app.example.comand the associated web root directory/usr/local/lsws/app.example.com/html/. Certbot does not support the OpenLiteSpeed webserver profile, and you must manually enable the generated certificate files in your virtual host configuration.Your output should be similar to the one below when an SSL is successfully generated.
Test the Certbot SSL certificate renewal process.
CONSOLEAccess your OpenLiteSpeed web administration dashboard.
Navigate to Listeners on the main navigation bar.
Click Add within the Listener List section to add a new listener.
Enter the following values in the respective field to listen for HTTPS requests on the server.
- Listener Name:
HTTPS - IP Address:
ANY IPv4 - Port:
443 - Secure:
Yes
- Listener Name:
Click Save to add the new listener on your webserver.
Find the new HTTPS listener on your Listener list. Then, click View in the actions section to modify the listener details.
Click Add within the Virtual Host Mappings section to bind the listener to an existing virtual host on your server.
Enter the following details in the respective fields to bind your virtual host.
- Virtual Host:
app.example.com - Domains:
app.example.com
- Virtual Host:
Click Save to apply the new virtual host mappings on your webserver.

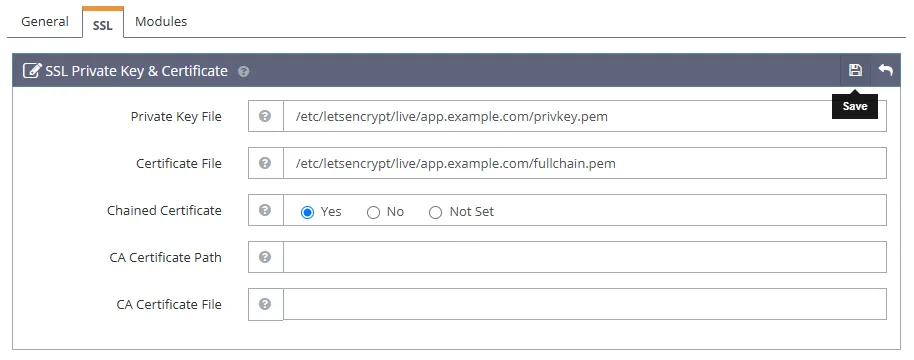

Navigate to the SSL tab and click edit within the SSL Private Key & Certificate section to modify your certificate details.
Enter the following details in the respective fields to match your Let's Encrypt SSL certificate paths.
- Private Key File:
/etc/letsencrypt/live/app.example.com/privkey.pem - Certificate File:
/etc/letsencrypt/live/app.example.com/fullchain.pem - Chained Certificate:
Yes
- Private Key File:
Click Save to apply the new SSL certificate details in your virtual host configuration.
Find the LSWS PID option and click Graceful Restart to restart the webserver.
Click GO when prompted to restart LiteSpeed and apply your configuration changes.
Note
When running multiple virtual hosts on your server. Navigate to the Virtual Hosts tab, open your target virtual host, and click SSL to enable an SSL certificate to bind with the virtual host configuration.
Set Up Firewall Rules
Uncomplicated Firewall (UFW) is available and active on Vultr Ubuntu servers by default. Configure the firewall to allow network connections to the OpenLiteSpeed web administration dashboard port 7080, HTTPS port 443 and the HTTP port 80 as described in the following steps.
Enable UFW and allow connections to the SSH port
22if it's inactive on your server.CONSOLEAllow connections to the OpenLiteSpeed console port
7080.CONSOLEAllow HTTP connections on the server.
CONSOLEAllow HTTPS connections.
CONSOLERestart UFW to apply your firewall changes.
CONSOLEView the firewall status and verify that the new rules are active on your server.
CONSOLEAccess your virtual host's domain using HTTPS in a new web browser window to test your SSL configurations.
Conclusion
You have installed the OpenLiteSpeed webserver on Ubuntu 24.04 and set up a sample virtual host to securely deliver web applications on your server. The OpenLiteSpeed webserver application includes native support for PHP which allows you to run dynamic web applications depending on your development needs. For more information, please visit the OpenLiteSpeed documentation.
